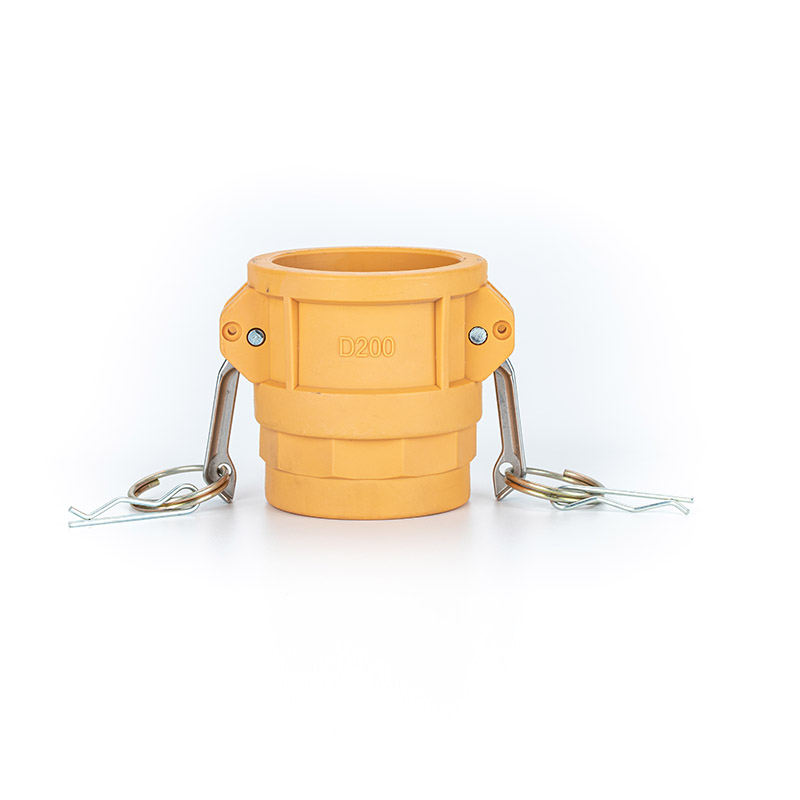

Nylon camlock fitting Type D

Description

Introduction：

Nylon cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″.Fiber reinforced nylon camlock couplings are worked under low pressure, apply to most corrosive chemicals and solvents. nylon camlock fittings because of its excellent material properties, it can stand up with cross threading,impact,warpage and crushing.For special applications,they are totally inert and make no sparks or galvanic action.

Description:

• Body materials: fiber reinforced nylon
• Handle: stainless steel
• Gaskets：Buna-N (NBR), EPDM
• The thread of camlock fittings are BSP,BSPT,NPT
• SIZE：1/2″to 4″
• Pressure :50-100 Psi( depending on size and temperature)
• Operating temperature :-30-70°C (°C F 160)
• When the temperature rises, the working pressure drops
• Manufacture method：Injection molding

Cam and groove couplings use and connection mode: Type D camlock can usually be used with type A, type E, type F, type DP (Dust Plug) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature：

• lightweight, convenient
• good wear resistance
• suitable for most chemicals, agricultural fertilizers
• economic utility
• disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

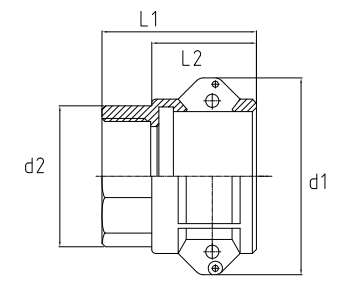

Size diagram：

Unit：mm

Part No	d1	d2	L1	L2
050	52	34	54	34
075	52	34	54	34
100	62	41	60	41
125	78	59	70	46
150	88	59	72	49
200	98	71	83	55
250	111	84	85	56
300	132	102	90	60
400	165	131	92	60
