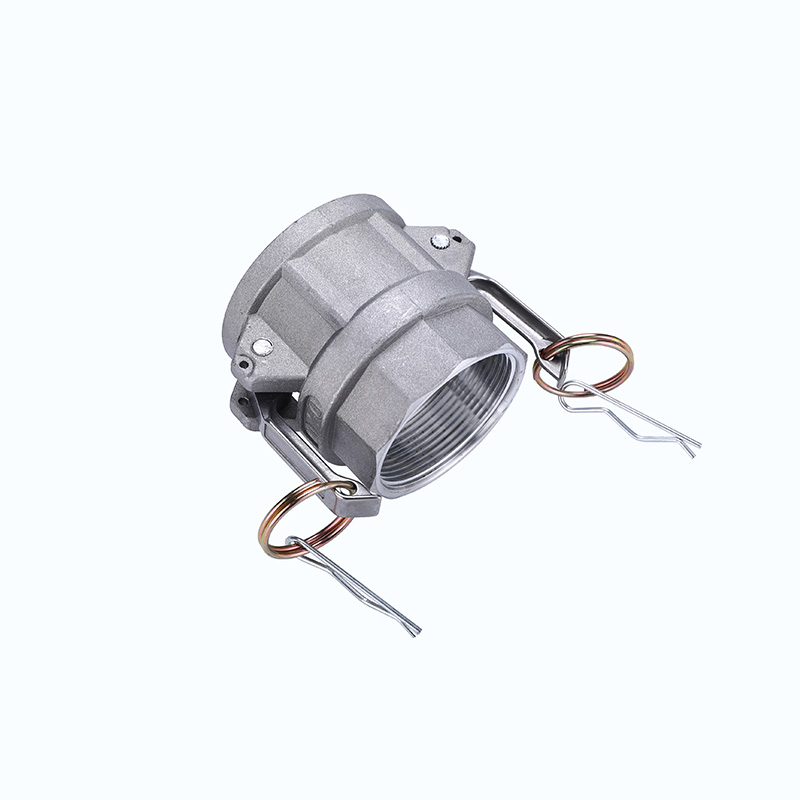

Aluminum camlock fitting Type D

  • Product Name: Type D
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.

Description

Introduction:

Aluminum cam and groove adapters are produced according to A-A-59326(replacing original standard Mil-C-27487) or EN14420-7(replacing DIN 2828), size from 1/2″ to 8″. The coupling of cam grooves between manufacturers is interchangeable, but no 1/2″(12.7 mm), 5″(127 mm) and 8″(203.2 mm) interchangeability. EN14420-7(replacing DIN 2828)camlcok coupling can be coupled with A-A-59326, EN14420-7 Camlock coupling hose tail is used in conjunction with EN 14420-3/DIN2817 Clamps.

Camlock fittings provide a simple and reliable method for connecting and disconnecting hoses, with good wear resistance, chemical resistance and economic cost. These camlock fittings can transport gasoline, hydraulic oil, kerosene, water, mud, salt water, acid and alkaline fluid media by connecting PVC pipes, rubber hoses, etc. It has the advantages of quick connection, flexible disassembly and labor saving.

Description:

  • Body Material: Aluminum
  • Handle: Stainless steel or Brass
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • Size:1/2″to 8″
  • Working pressure :50-250 Psi( depending on size and temperature)
  • Operating temperature :-40 to 145℃(depending on the rubber ring material)
  • Manufacture method:gravity casting

The use and connection way of the cam and groove couplings : Type D camlock can usually be used with E, F, and (Dust Plug) types. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Economy, light weight, convenience, interchangeability
  • Connect without tools
  • Good corrosion and chemical resistance

Industry applications:

  • Industry: Petroleum, mining, municipal, construction, chemicals, agriculture
  • Applications: Fuel Transport, Hydraulic Oil, Petroleum Products, Irrigation, Water Treatment, Salt Water,Waste Water, Chemical Transport and Storage
  • Camlock fittings is not suitable for conveying compressed air and steam.

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

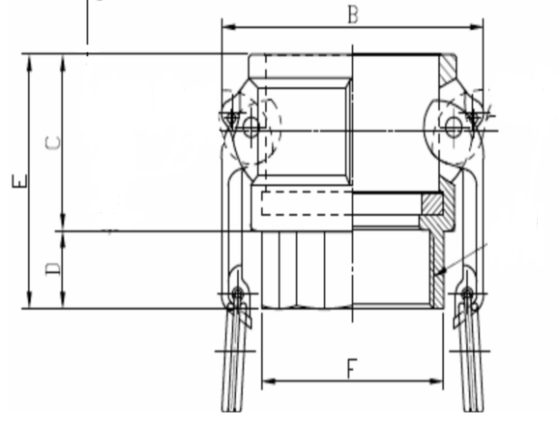

Aluminum camlock fittings Female coupler Type D

Unit:mm

Part No

B

C

D

    E

F

050

45

31.5

16

47.5

27

075

61.3

33.2

19

52.2

32.4

100

68.2

39.9

19.1

59

38.5

125

79.7

45.5

22

67.5

48.5

150

87.4

46

23.5

69.5

56

200

97

52.5

23.5

76

66

250

109.5

55.5

29

84.5

81.2

300

131.8

58

31.5

89.5

96

400

159.9

59

33

92

122.5

500

187.6

60

36

96

152

600

240

62.8

37

99.8

181
