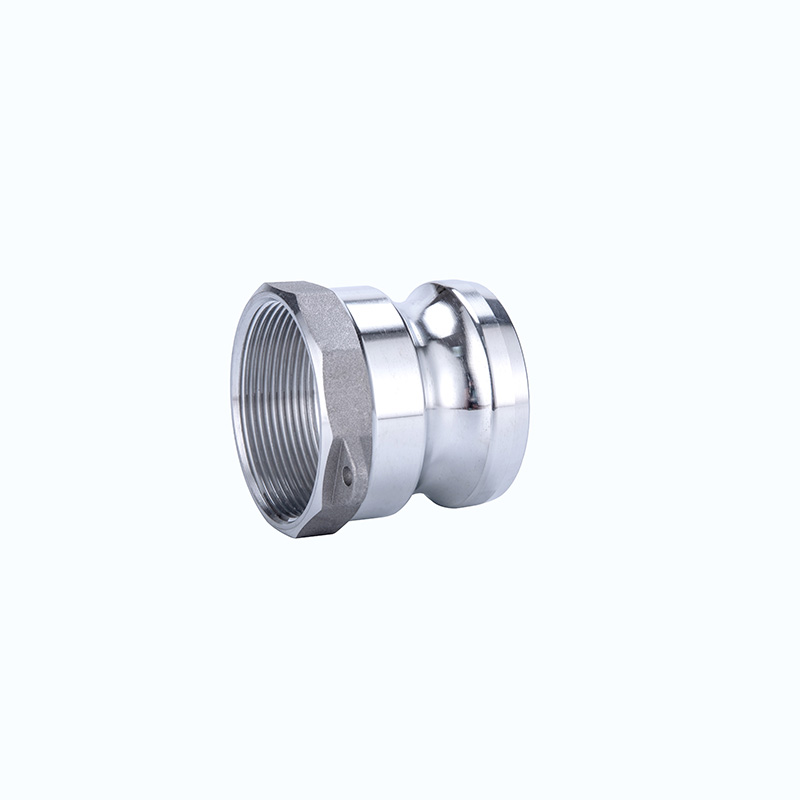

Aluminum camlock fitting Type A

  • Male Adapter with Female Thread
  • Product Name: Type A
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.

Description

Introduction:

Aluminum cam and groove adapters are produced according to A-A-59236(replaced Mil-C-2787) or EN14420-7(replaced DIN2828). The size range is from 1/2” to 8”. The couplings of cam grooves between manufacturers are interchangeable, except 1/2”(12.7mm) and 8”(203.2mm). The camlock couplings of A-A-59236 and EN14420-7 are interchangeable, but the hose end of them are different.

Camlock fittings provide a simple and reliable way to connect and disconnect the hoses. These camlock fittings can be used together by connecting PVC pipes, rubber hoses, etc., which can transport a variety of fluid media such as gasoline, heavy oil, kerosene, water, mud, salt water, acid, and alkali, etc. It has the advantage of fast connection, flexible disassemble.

Description:

  • Material of the body: Aluminum
  • Material of the arm: stainless steel or brass
  • The thread of camlock fittings is BSP, BSPT, NPT, G (ISO228.1), and R(DIN2999).
  • Size:1/2” to 8”
  • Working pressure: 50-250Psi(It depends on the size and temperature)
  • Manufacture method: gravity casting.

The use and connection way of cam and groove couplings: Type A camock can be match used with D, C, DC types. if the user wants to make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Lightweight, flexible and interchangeable
  • Convenient that connect and disconnect without tools

Industry applications:

  • Industry: Oil, mine, municipal, construction, chemical and agriculture.
  • Application: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater, chemical transportation and storage etc.

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

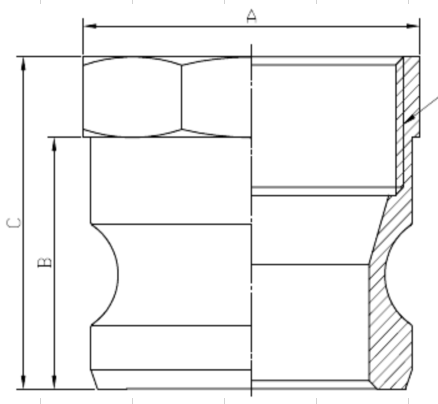

Aluminum camlock fittings male adapter Type A drawing and measurement:

Unit:mm

Part No

A

B

C

050

24.4

26

41

075

32.4

26

41

100

38.5

34.8

51.6

125

48.5

40

55

150

56

41

56

200

66

46

59

250

80

50

68

300

96

51

71.7

400

122.5

53.8

73.8

500

152

53

75.5

600

181

57.3

79.8
