Camlock coupling is a versatile and popular quick-connect fitting used in various industries for fluid transfer applications. Also known as camlock fitting, it consists of two parts, a male adapter, and a female coupler. This allows for easy connection and disconnection. Camlock couplings are known for their ease of use, reliability, and efficiency. They find extensive applications in agriculture, oil and gas, pharmaceuticals, chemicals, etc.

Learning about the proper installation process of camlock couplings is crucial to ensure safety and optimal performance. This guide will assist you in this regard.

Basic Information About Camlock Coupling

Before learning about the proper installation process, it is important to familiarize yourself with the different types of camlock coupling available in the market. Understanding these types will help you choose the right one according to your specific application.

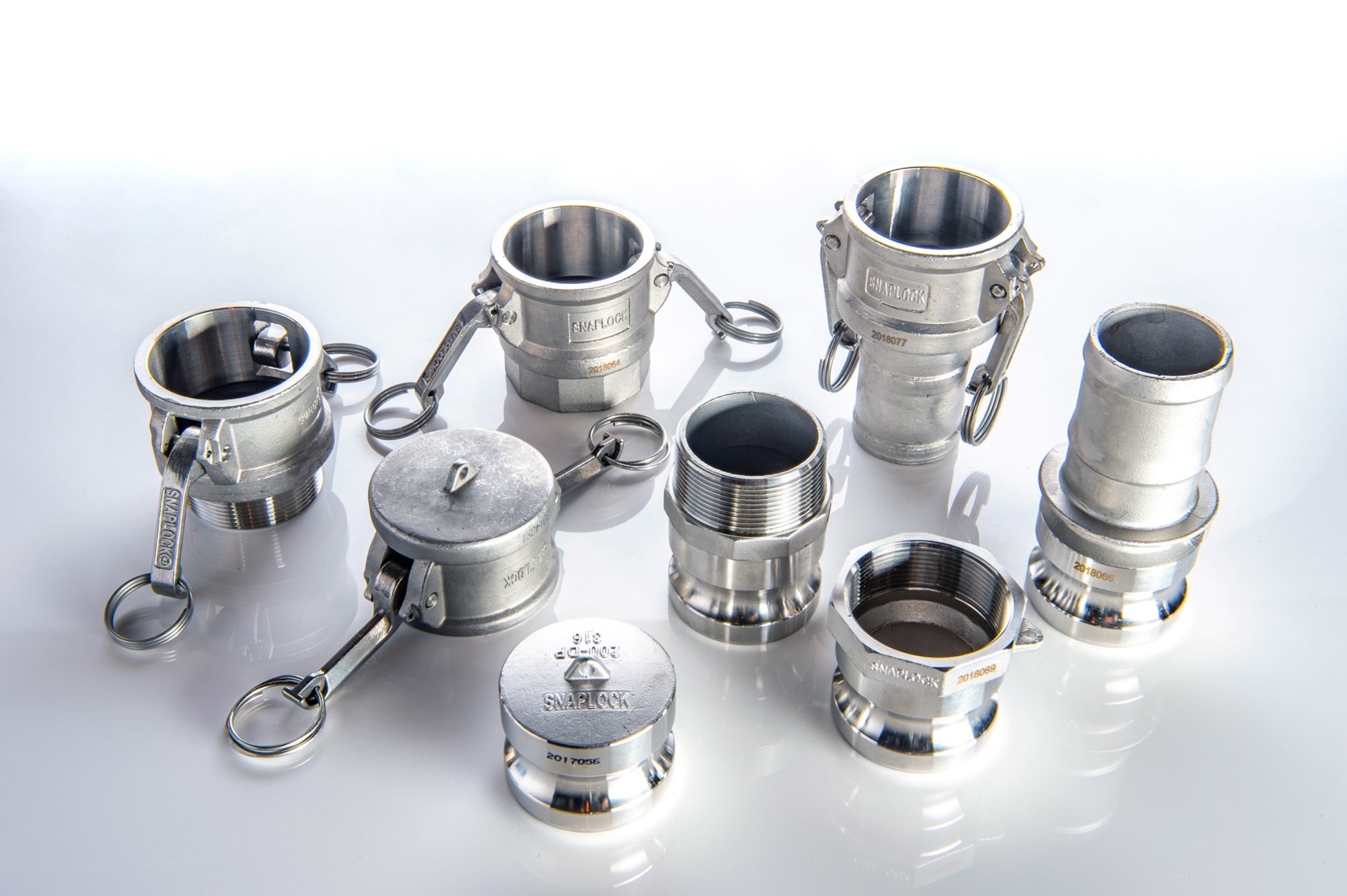

  1. Types of Camlock Coupling

Camlock coupling has many types. The different types cater to different connection requirements and applications. Some of the popular types include the following:

  • Type A: This type of camlock coupling comes with an adapter and a female thread.
  • Type B: Type B camlock fitting features a male thread and a coupler.
  • Type C: This type includes a coupler and a hose barb.
  • Type D: Type D consists of a female thread and a coupler.
  • Type E: This camlock fitting type is prepared using a shank and an adapter.
  • Type F: This type comes with a male thread and an adapter.

The different types of camlock coupling also differ based on their material options, including brass, aluminum, polypropylene, stainless steel, Ny-glass, etc.

  1. The Features of Camlock Coupling

The various useful features of camlock coupling make it suitable for various applications and environments. Here are some reasons to use these fittings:

  • Ease of Use: Camlock couplings are known for their ease of use. They are very easy to connect and disconnect and require no tools for assembly.
  • Quick to Couple: The rapid connection capability is one of the most significant advantages of camlock fittings. The cam and groove coupling design allows for an efficient and quick coupling, hence minimizing downtime and enabling swift workflow.
  • Durable: Their sturdy construction ensures no internal components or complex mechanisms can be affected by dirt or premature damage. This durability allows for long-lasting reliability and performance.
  • Versatile: Camlock fittings are highly versatile and suitable for various applications involving gases, powders, and liquids. They find extensive use in industries such as agriculture, food processing, pharmaceutical, chemical, and many others.
  • Cost-Effective: Camlock fittings offer a cost-effective solution compared to other quick disconnect options. Their reasonable pricing, reliability, and ease of use result in significant cost and time savings in various industries.

How to Install Camlock Couplings

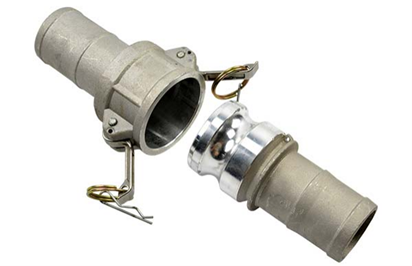

Camlock coupling consists of a coupler, adapter, and assembly like handle, pin, safe clips, finger rings, etc. Follow these steps for the camlock coupling proper installation:

  1. The first step is to open the coupler. Simply pull back the locking level over the cam handles and turn the handles off the body of the coupler at the same time.
  2. Next, insert the adapter plug into the coupler. To do this, extend the cam arms and slip the adapter in until it contacts the gasket.
  3. Now close the coupler by rotating it toward the coupler’s body. Then use normal hand pressure to press the handle down simultaneously. The coupling closes when you close the cam lock handles.

Conclusion

Overall, proper installation of camlock coupling is essential to ensure optimal performance and safety. By following the above-listed guidelines, and you can ensure a leak-free, secure connection. Be sure to buy the camlock fittings from a reputed supplier for a hassle-free installation experience. The seasoned manufacturer Union Metal is a top choice because of its industry experience, commitment to quality, and excellent after-sales services.

At Union Metal, we specialize in providing professional-grade camlock couplings at unbeatable prices. Our certified products are suitable for various industries, including food, agriculture, chemical, mining, and more. These products undergo strict quality control measures to ensure longevity and reliability. Get in touch with us today to find the appropriate materials and size of camlock fittings for your specific application.
