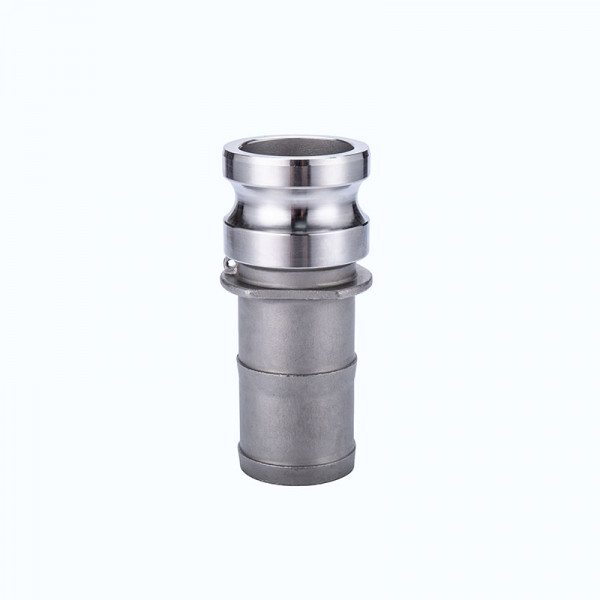

- Male Adapter With Hose Shank
- Product Name: Type E
- Material: SS316 / SS304
- Sizes:1/2″-8″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
SS Camlock fitting Type E
Description
Introduction:
Stainless steel camlock fitting is produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), Also known as Cam &groove couplings, and they are mainly composed male adapter and female coupler two parts. Camlock coupling is easy to install. During the process of installation, no tools are required and hand pressure is enough. Each material’s camlocks has its advantages and disadvantages, so you should balance their application and value to choose the right camlock couplings to use.Stainless Steel Camlocks are best suited for acid,alkali,and corrosive substances.
Description:
- Body material：Stainless steel 316or 340
- Handles &pins：Stainless steel
- Gaskets：Buna-N,EPDM,PTFE &food grade silicone gasket
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- Size：1/2″to 8″
- Working pressure :50-250 Psi( depending on size and temperature)
- Manufacture method：precision casting
The use and connection way of cam and groove couplings: Type E camlock can usually be used with D type, C type, DC (Dust Cap)type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.
Feature：
- Good corrosion resistance
- Convenience, interchangeability
- Easily disconnect/connect without tools
Industry applications:
- Petroleum, mining, municipal, construction, chemicals, agriculture
- Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage
Stainless steel camlock fittings operating pressure:
Size | Working Pressure |
1/2” | 150 Psi |
3/4”-2” | 250 Psi |
2-1/2” | 225 Psi |
3” | 200 Psi |
4” | 150 Psi |
5”-6” | 75 Psi |

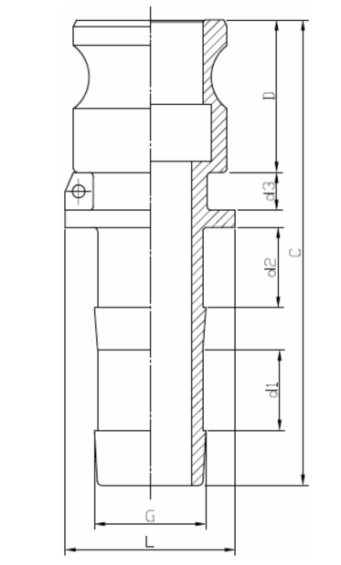

Stainless steel camlock coupling：
Unit:mm
Part No | C | D | d1 | d2 | d3 | G | L |  |
050 | 72.4 | 26 | 12 | 11 | 2.3 | 14.2 | 24.5 | |
075 | 85.3 | 26 | 17.5 | 17.6 | 8 | 21.5 | 34 | |
100 | 100.8 | 33.8 | 18 | 18 | 8.5 | 27.4 | 42 | |
125 | 109 | 39 | 20 | 18 | 9 | 34.1 | 48 | |
150 | 123.5 | 41 | 25 | 26.5 | 8 | 39.6 | 57.5 | |
200 | 142 | 46 | 31.5 | 31.5 | 10 | 52.4 | 66 | |
250 | 150.5 | 48 | 32 | 32.6 | 11.5 | 66.6 | 82 | |
300 | 157 | 50 | 35 | 31.6 | 11 | 77.8 | 91.5 | |
400 | 170.5 | 52.8 | 38 | 40 | 9.4 | 103.2 | 119.5 | |
500 | 206 | 53 | 40.2 | 63 | 15 | 129 | 148 | |
600 | 250.8 | 57.3 | 31.8 | 31.8 | 15 | 154 | 185 |
