Description
Introduction:

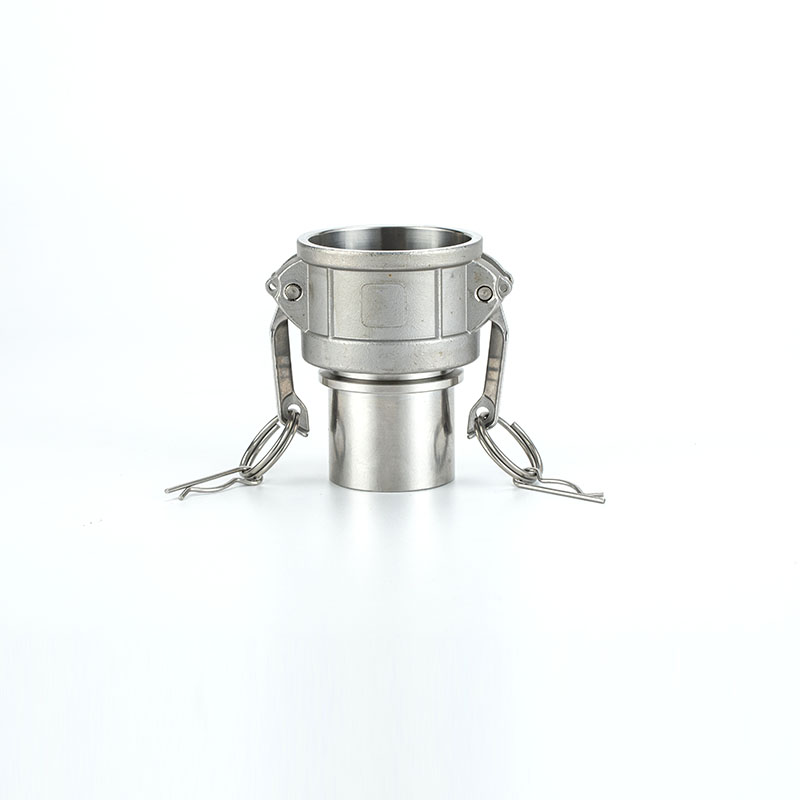

DIN2828 Camlock Fitting Type C Features:
- Camlock Coupling Smooth Tail With Collar. DIN2828 (EN14420-7) Camlock Coupling Type C, smooth tail with collar using with safety Clamp (EN14420-3/DIN2817)is assembled with hoses.
- According to European EN14420-7and, the German DIN 2828 standards, Camlock fittings can be coupled with the standard of MIL-C-27487 / A-A-59326A, but differ in terms of hose tail design. A flat thread seal has been added to the female threaded parts, and a smooth hose shank complying with DIN 2817 has been added for assembly with RK safety clamps complying with DIN2817.
DIN2828 Camlock Fitting Type C Specification:
- Body Material: Stainless Steel or Aluminum
- Arm: Stainless Steel
- Gaskets: NBR, PTFE, Viton, EPDM, PU, etc
- Size: 3/4” to 6”
- Thread:BSP, G (ISO228.1), R (DIN2999).
- Working Pressure: 50-250Psi(It depends on the size and temperature)
- Manufacture Method: Precision Casting & Gravity Casting
DIN2828 Camlock Fittings Type C Advantages:
- Light, flexible and interchangeable
- To connect and disconnect without a tool
- Economical
DIN2828 Camlock Fittings Type C Applications:
Industries List
- Oil Industry
- Mining Industry
- Municipal Construction
- Chemical Industry
- Agriculture
Specific Application
- Hydraulic oil, Fuel delivery
- Coolant, Water treatment, Brine
- Gasoline and petroleum products
- Sewage treatment
- Chemical transportation
- Chemical StorageVentilation
