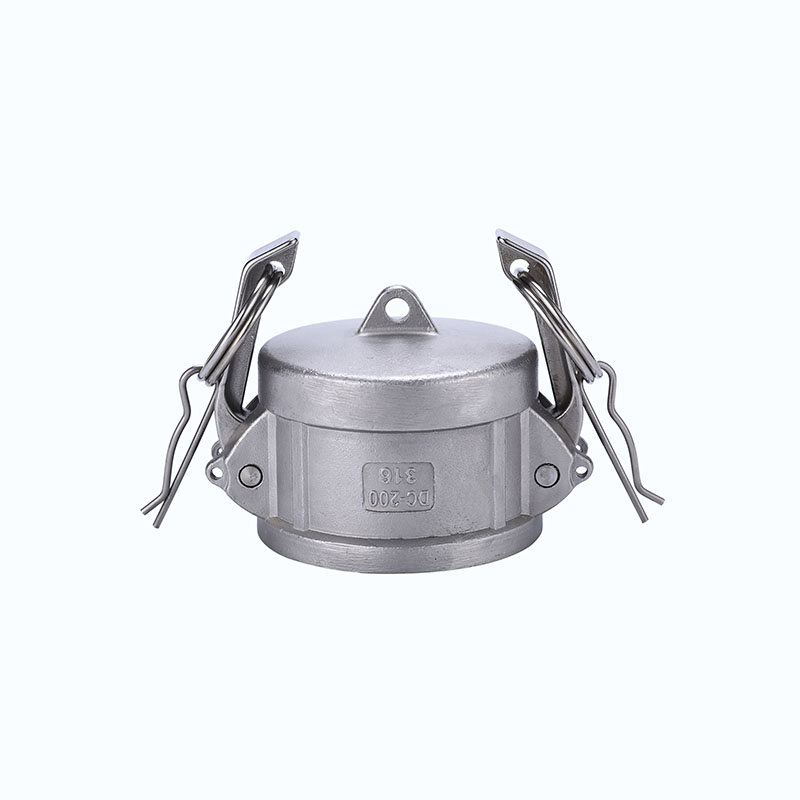

- Female Coupler Dust Cap
- Product Name: Type DC
- Material: SS316 / SS304
- Sizes:1/2″-8″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
SS camlock fitting Type DC
Description
Introduction:
Stainless steel camlock fittings are produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove couplings, they are mainly composed of male adapter and female coupler. Camlock fittings is a kind of pipe joint which can be disassembled quickly without using tools.It has the advantages of light weight,convenience and interchangeability.It provides a simple and reliable method for connecting and disconnecting the hose.Stainless Steel Camlocks are best suited for acid,alkali,and corrosive substances.
Description:
- Body material：Stainless steel 316or 340
- Handles &pins：Stainless steel
- Gaskets：Buna-N,EPDM,PTFE &food grade silicone gasket
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- Size：1/2″to 8″
- Working pressure :50-250 Psi( depending on size and temperature)
- Manufacture method：precision casting
The use and connection way of cam and groove couplings: Type DC camlock can usually be used with E type, F type and A type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.
Feature：
- Good corrosion resistance
- Convenience, interchangeability
- Easily disconnect/connect without tools
Industry applications:
- Petroleum, mining, municipal, construction, chemicals, agriculture
- Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage.
Stainless steel camlock fittings operating pressure:
Size | Working Pressure |
1/2” | 150 Psi |
3/4”-2” | 250 Psi |
2-1/2” | 225 Psi |
3” | 200 Psi |
4” | 150 Psi |
5”-6” | 75 Psi |

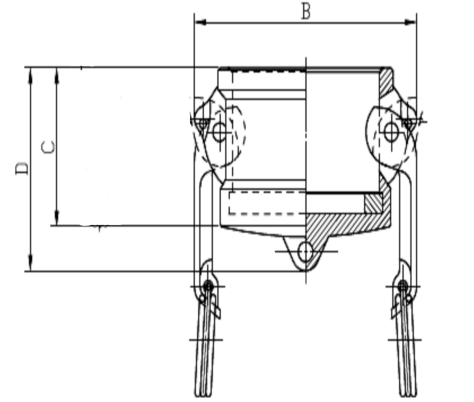

Stainless steel camlock coupling：
Unit:mm
Part No | B | C | D |  |
050 | 45 | 31.5 | 39.5 | |
075 | 61.3 | 33.2 | 45.2 | |
100 | 68.2 | 39.9 | 57.4 | |
125 | 79.7 | 45.5 | 63 | |
150 | 87.4 | 46 | 62 | |
200 | 97 | 51.5 | 69 | |
250 | 109.5 | 55.5 | 73 | |
300 | 131.8 | 58 | 76.5 | |
400 | 159.9 | 59 | 78 | |
500 | 187.6 | 60 | 86 | |
600 | 240 | 62.8 | 90.8 |
