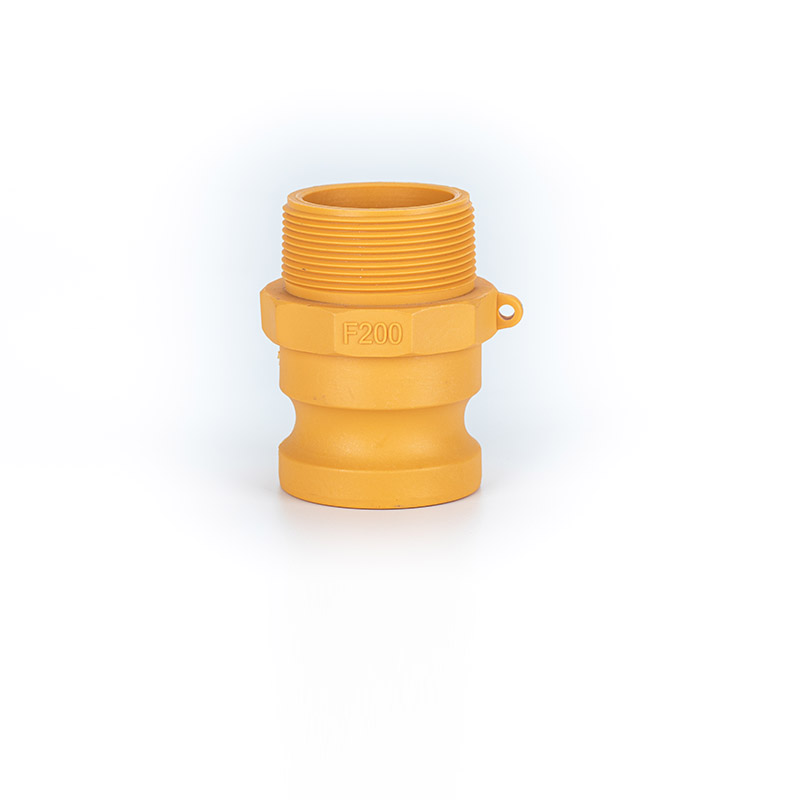

Nylon camlock fitting Type F

  • Male Adapter With Male Thread
  • Product Name: Type F
  • Material:Nylon
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-1-1 Categories: ,

Description

Introduction:

Nylon cam and groove Coupling are manufactured according to standard A-A-59326(original standard Mil-C-27487, size from 1/2″ to 4″. Nylon camlock coupling is made of fiber reinforced nylon, high strength but very light weight, Excellent performance over metal joints, including cross threading, impact, warpage and crushing, are widely used in suction/discharge hoses of agriculture or industrial applications



Description:

  • Body materials: fiber reinforced nylon
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (°C F 160)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type F camlock can usually be used with type D, type C, type B, type DC (use and connection) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Lightweight, convenient
  • good wear resistance
  • suitable for most chemicals, agricultural fertilizers
  • economic utility
  • Disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

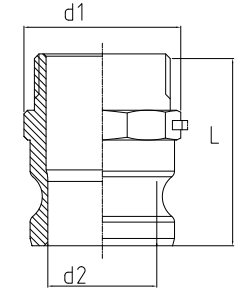

Size diagram:

Unit:mm

Part No

d1

d2

L

050

34

21

58

075

34

22

58

100

41

24

66

125

48

29

78

150

58

37

78

200

70

45

90

250

80

59

92

300

100

74

98

400

110

93

108
