Camlock fitting Multi Barb Type C

Home|Product|Camlock fittings|Aluminum Camlock coupling|Camlock fitting Multi Barb Type C

Camlock fitting Multi Barb Type C

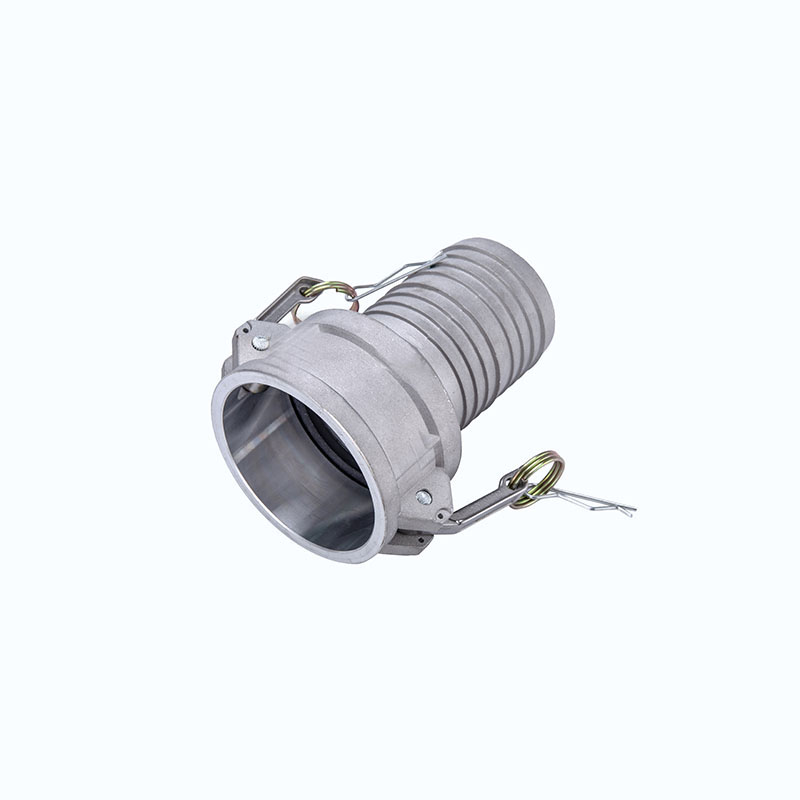

  • Female Coupler With Multi Barb Hose Shank
  • Product Name: Type C
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.
SKU: 2041-1-1 Categories: ,

Description

Introduction:

Aluminum cam and groove adapters are produced according to A-A-59326(replaced Mil-C-27487) orEN14420-7(replaced DIN2828). Size range is from 1/2” to 8”. Camlock fittings of different manufacturers are interchangeable, but A-A-59326/Mil-C-C27487 doesn’t require the interchange of 1/2”(12.7mm) 5”(127mm) and 8”(203.2mm). EN14420-7/DIN2828 is interchangeable with A-A-59326, but the hose end of them are different.

Camlock fittings provides a simple and reliable way to connect and disconnect hoses, which is more efficient and economical than threaded or flanged joints. Camlock fittings is suitable for transporting heavy oil, kerosene, water, hydraulic oil, oil and fuel, or acid and alkaline chemicals, with the advantages of quick connection and flexible disassembly.

Description:

  • Material of body: Aluminum
  • Handle: Stainless steel or Brass
  • Gaskets:NBR,PTFE,viton,EPDM etc
  • Size:1/2″to 8″
  • Working pressure :50-250 Psi( depending on size and temperature)
  • Operating temperature :-40 to 145℃(depending on the rubber ring material)
  • Manufacture method:gravity casting

The use and connection way of cam and groove couplings : Type A camlock can usually be used with E type, F type, DP type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Economic and practical, light weight, convenient, interchangeability
  • Easily disconnect/connect without tools
  • Oil resistance, wear resistance

Industry applications:

  •  Industry: Petroleum, mining, municipal, construction, chemicals, agriculture
  •  Applications: Hydraulic fluids, coolant, gasoline and petroleum products, fuel transportation, irrigation, water treatment, brine, wastewater, chemicals transport and storage etc.

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

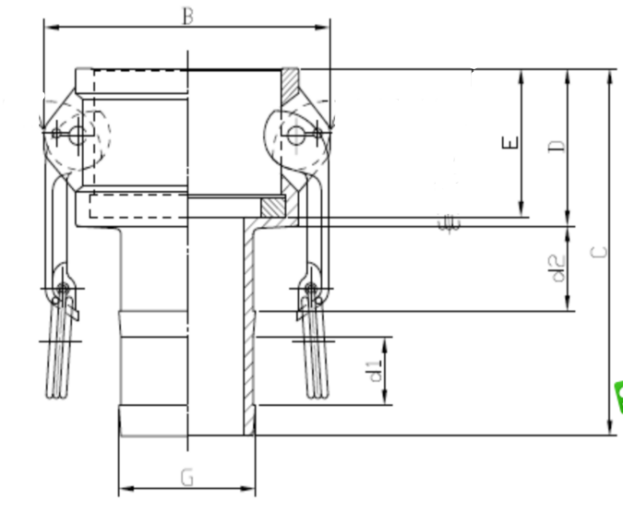

Aluminum camlock fittings Female coupler Type C:

Unit:mm

Part No

B

C

D

d1

d2

G

050

45

72.2

31.5

12

11

14.2

075

61.3

81

33.2

17.5

1`7.6

21.5

100

68.2

95

40

18

18

27.4

125

79.9

102.5

45.5

20

18

34.1

150

87.4

116.5

46

25

26.5

39.6

200

97

132.5

52.5

31.5

31.5

52.4

250

109.5

142.4

55.5

32

32.8

66.6

300

131.8

148

58

35

31.6

77.8

400

159.9

159.5

59

38

40.1

103.2

500

187.6

192

60

40.2

63.3

129

600

240

234.2

62.7

38.1

38.1

154
