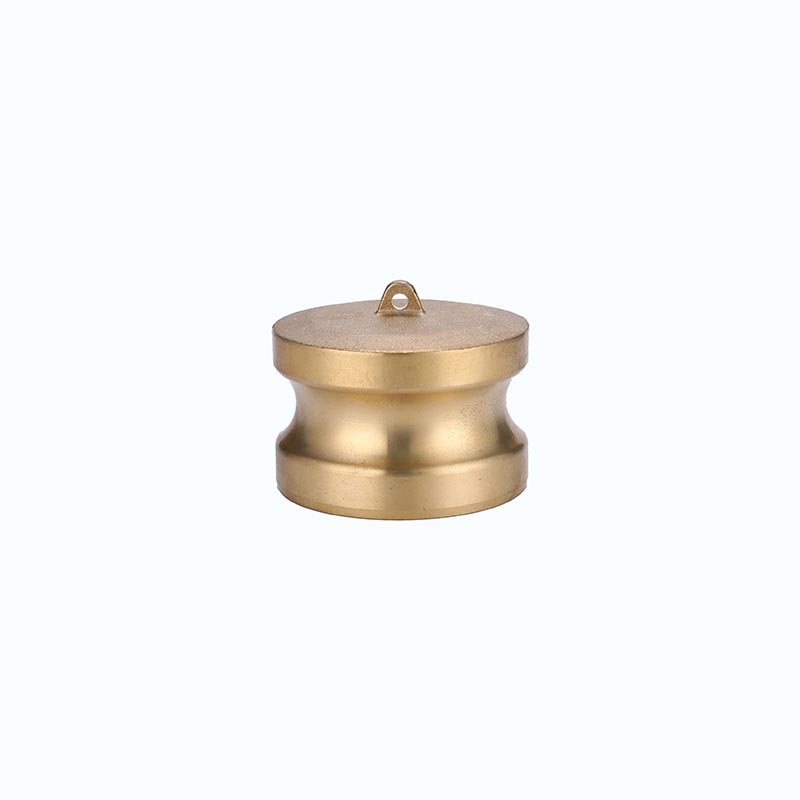

Brass camlock fitting Type DP

  • Male Adapter Dust Plug
  • Product Name: Type DP
  • Material: Brass
  • Sizes:1/2″-6″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-5-1-1 Categories: ,

Description

Introduction:

 Brass cam and groove coupler &adapter are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 8″.The 3/4″-6″ between manufacturers is interchangeable, while 1/2″,5″ and 8″ are not necessarily interchangeable because they are not standard dimensions.Among the pipes that need to be disassembled frequently, the camlock coupling has the advantages of quick connection, flexible disassembly and labor saving. It is used according to different materials and can transport various fluid media such as gasoline and petroleum products (heavy oil, kerosene, hydraulic oil), fuel, coolant, salt water, acid and alkaline chemicals.

 Description:

  • Body materials: Brass
  • Handle: Brass
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • SIZE:1/2″to 6″
  • Pressure :75-250 Psi( depending on size and temperature)
  • Operating temperature :-40 to 145℃
  • Manufacture method:Forging and casting

The use and connection way of cam and groove couplings: Type DP camlock can usually be used with B type, C type, and D type of the same size. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Convenience, interchangeability
  • good corrosion resistance
  • non-sparking characteristics
  • longer service life
  • Easily disconnect/connect without tools

Industry applications:

Industries: petroleum, mining, municipal, construction, marine refueling systems

Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2”

250 Psi

2-1/2”

150 Psi

3”

125 psi

4”

100 psi

5” – 6”

75 psi

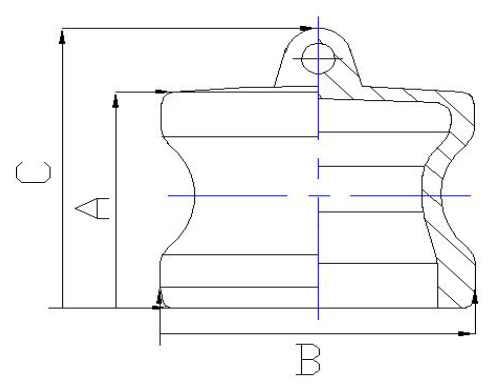

Size diagram:

Unit:mm

Part No

A

B

C

050

27.5

24.4

35.5

075

26

32

38

100

34.8

36.6

52.3

125

40

45.4

57.5

150

41

53.4

57

200

56

63

63.5

250

50

75.7

67.5

300

50

91.4

67.5

400

50.8

119.5

69.8

500

53

145.2

78

600

61.3

1`75.8

89.3
