Aluminum camlock fitting Type B

Home|Camlock fittings|Aluminum Camlock coupling|Aluminum camlock fitting Type B

Aluminum camlock fitting Type B

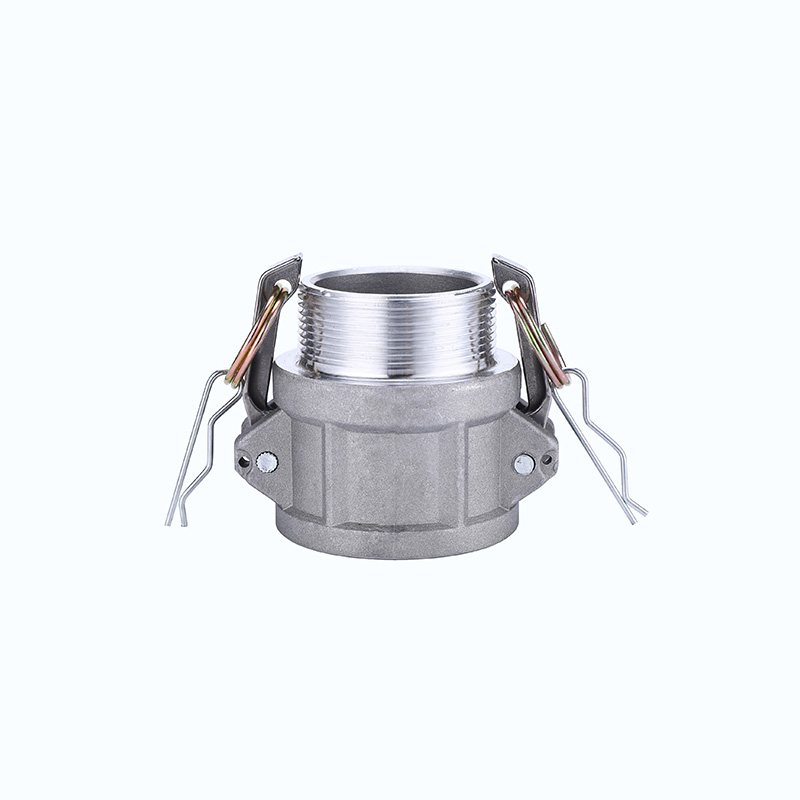

  • Female Coupler with Female Thread
  • Product Name: Type B
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.

Description

Introduction:

Aluminum cam and groove adapters are manufactured according to A-A-59326( replaced Mil-C-27487) or EN14420-7(replaced DIN2828). The cam and groove of different manufacturers are interchangeable, except 1/2”(12.7mm), 5”(127mm) and 8”(203.2mm). The camlock couplings of EN14420-7 is interchangeable with A-A-59326, but the hose end is used with EN 14420-3/DIN2817.

Camlock fittings provides a smple and reliable way to connect and disconnect the hose. It is good wear resistance, chemical resistance and economical. Camlock fittings can transport various fluid media by connecting PVC hose and rubber hose, such as gasoline, hydraulic oil, kerosene, water, mud, salt water, acid and alkali. It has advantage of fast connection, flexible disassemble etc.

Description:

  • The material of the body: aluminum
  • Arm: stainless steel and brass
  • The thread of camlock fittings are BSP, BSPT, NPT, G(ISO228.1) and R(DIN2999).
  • Size:1/2” to 8”
  • Working pressure: 50-250 Psi (It depends on the size and temperature)
  • Manufacture method: gravity casting

Application and connection method of Cam & groove couplings: type B can be used with type E, F, DP. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Econimical, light, convenient and interchangeable.
  • It can be operated without any tool.
  • Good corrosion and chemical resistance.

Industry applications:

  • Application industry: petroleum, mining, municipal administration, construction, chemicals and agriculture.
  • Application:  hydraulic oil, coolant, gasoline and petroleum products,fule transportation, irrigation, water treatment, salt water, waste water, chemical products transportation and storage, dry bulk.

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

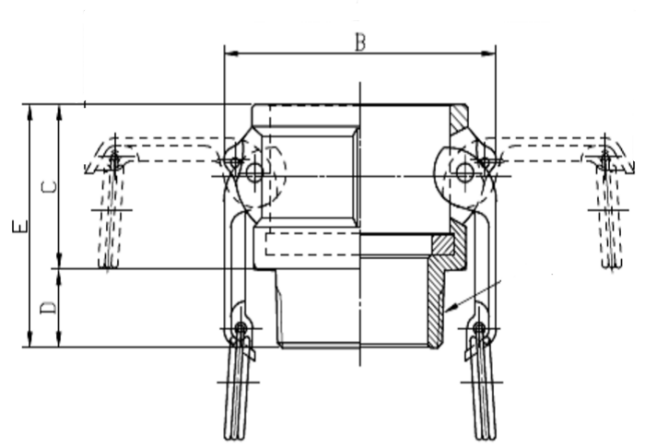

Aluminum camlock fittings Female coupler Type B drawing and size measurement:

Unit:mm

Part No

B

C

D

E

050

45

31.5

16

47.5

075

61.3

33.2

19

52.2

100

68.2

40

19

59

125

79.7

45.5

20

65.5

150

87.4

46

23.5

69.5

200

97

52.5

24.5

77

250

109.5

55.5

29

84.5

300

131.8

58

31.5

89.5

400

159.9

59

33

92

500

187.6

60

37

97

600

240

62.8

41

103.8
