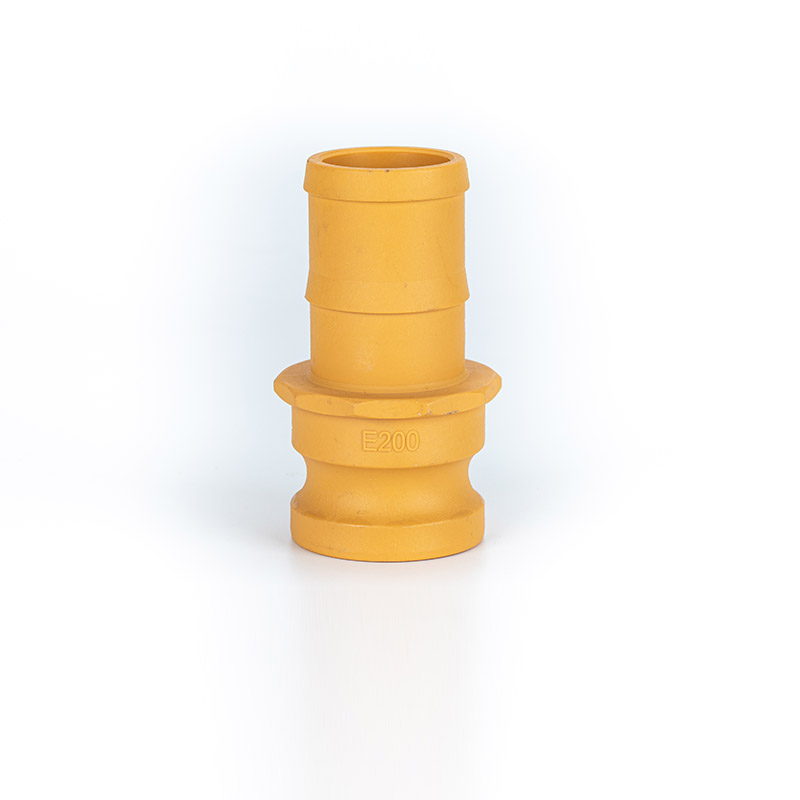

Nylon camlock fitting Type E

  • Male Adapter With Hose Shank
  • Product Name: Type E
  • Material:Nylon
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-3-2 Categories: ,

Description

Introduction:

Nylon cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″.fiber reinforced nylon camlocks are widely used in suction/discharge hoses of agriculture or industrial applications, apply to most chemicals, solvents, fertilizers, wastewater.

Description:

  • Body materials: fiber reinforced nylon
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (°C F 160)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type E camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Lightweight, convenient
  • good wear resistance
  • suitable for most chemicals, agricultural fertilizers
  • economic utility
  • Disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

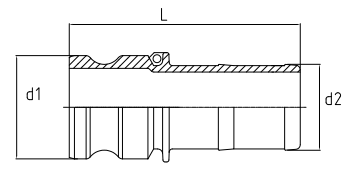

Size diagram:

Unit:mm

Part No

d1

d2

L

050

32

14

77

075

32

21

84

100

36.7

27

97

125

45.5

34

100

150

53.4

39

108

200

63

52.5

125

250

75.7

66

141

300

91.5

78

148

400

119.4

102

175
