- Male Adapter With Male Thread
- Product Name: Type F
- Material: SS316 / SS304
- Sizes:1/2″-8″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.

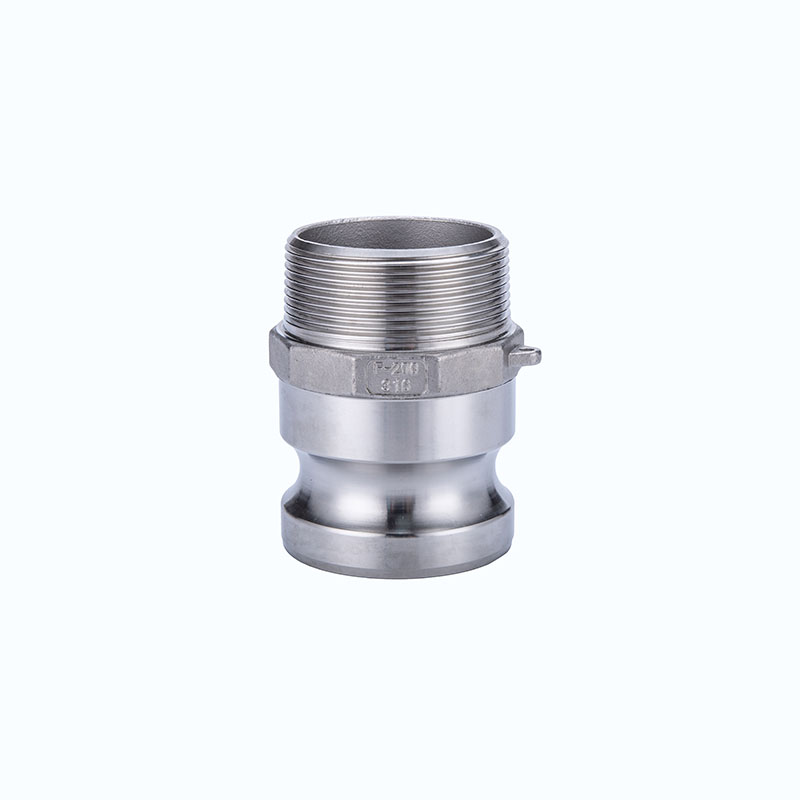

SS camlock fitting Type F
Description
Introduction:
Stainless steel camlock fittings is produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), Also known as Cam &groove coupler &adapter co uplings, and they are mainly composed male adapter and female coupler two parts. Camlock coupling is easy to install, You don’t need to use tools and you can quickly disassemble, It has the advantages of light weight, convenience and interchangeability, provides a simple and reliable way to connect and disconnect hoses. and can be used according to different materials, which can transport gasoline, heavy oil, kerosene, water, gas, brine, acid and alkaline and other fluid media
Description:
- Body material：Stainless steel 316 or 340
- Handles &pins：Stainless steel
- Gaskets：Buna-N,EPDM,PTFE &food grade silicone gasket
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- SIZE：1/2″to 8″
- Working pressure :50-250 Psi( depending on size and temperature)
- Manufacture method：precision casting
The use and connection way of cam and groove couplings: Type E camlock can usually be used with D type, C type, DC(Dust Cap) type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.
Feature：
- Good corrosion resistance
- Convenience, interchangeability
- Easily disconnect/connect without tools
Industry applications:
- Petroleum, mining, municipal, construction, chemicals, agriculture
- Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage.
Stainless steel camlock fittings operating pressure:
Size | Working Pressure |
1/2” | 150 Psi |
3/4”-2” | 250 Psi |
2-1/2” | 225 Psi |
3” | 200 Psi |
4” | 150 Psi |
5”-6” | 75 Psi |

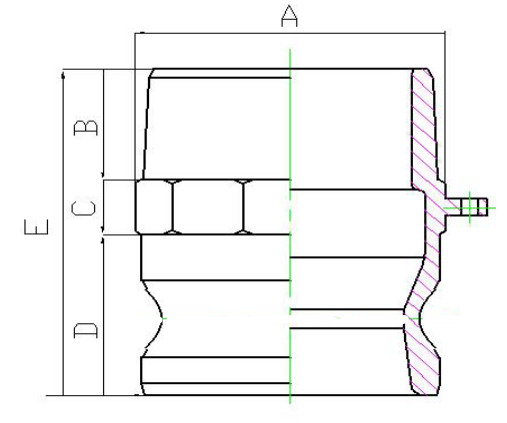

Stainless steel camlock coupling：
Unit:mm
Part No | A | B | C | D | E |  |
050 | 26.6 | 17 | 10 | 26 | 53 | |
075 | 32.4 | 19 | 10 | 26 | 55 | |
100 | 38.5 | 19 | 14 | 34.8 | 67.8 | |
125 | 47 | 24 | 14 | 40 | 78 | |
150 | 56 | 22 | 13 | 41 | 76 | |
200 | 65 | 24.5 | 13 | 46 | 83.5 | |
250 | 80 | 29 | 18 | 50 | 97 | |
300 | 95 | 31.5 | 17 | 51 | 99.5 | |
400 | 122.5 | 33 | 19 | 53.8 | 105.8 | |
500 | 150 | 37 | 22.5 | 57 | 112.5 | |
600 | 181 | 40.5 | 22.5 | 57.3 | 120.3 |
