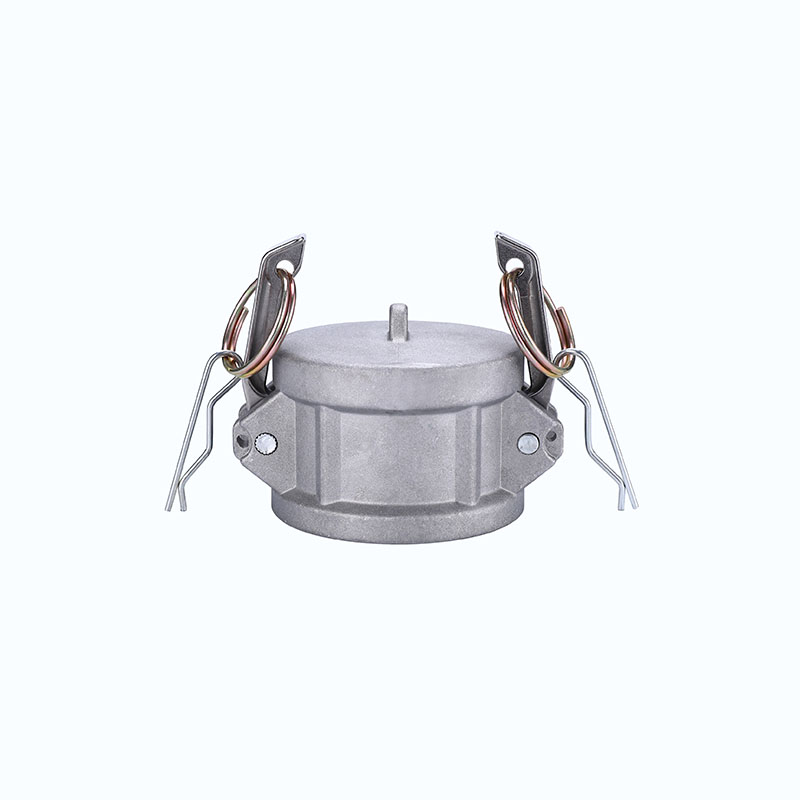

Aluminum camlock fitting Type DC

  • Female Coupler Dust Cap
  • Product Name: Type DC
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.

Description

Introduction:

Aluminum camlock Type DC are manufactured in accordance with standard A-A-59326(replacing original standard Mil-C-27487) or EN14420-7(replacing DIN 2828), size from 1/2″ to 8″. The coupling of cam grooves between manufacturers is interchangeable, Except for 1/2″(12.7 mm), 5″(127 mm) and 8″(203.2 mm).

Aluminum camlock provides a simple and reliable method for connecting and disconnecting hoses, with good wear resistance, chemical resistance and economic cost. These Aluminum camlock fittings can be used together by connecting PVC pipes, rubber hoses, etc., and can transport gasoline, heavy oil, kerosene, water, mud, salt water, acid and alkaline fluid media. They have the advantages of quick connection, flexible disassembly and labor saving.

Description:

  • Body Material: Aluminum
  • Handle: Stainless steel or Brass
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • Size:1/2″to 8″
  • Working pressure :50-250 Psi( depending on size and temperature)
  • Manufacture method:gravity casting

The use and connection way of the aluminum camlock: Type DC camlock can usually be used with E, A, and F. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Light weight, convenient and interchangeable
  • Easily disconnect/connect without tools
  • Economic utility

Industry applications:

  •  Industry: Petroleum, mining, municipal, construction, chemicals, agriculture
  •  Applications: Hydraulic fluids, coolant, gasoline and petroleum products, fuel transportation, irrigation, water treatment, brine, wastewater, chemicals transport and storage

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

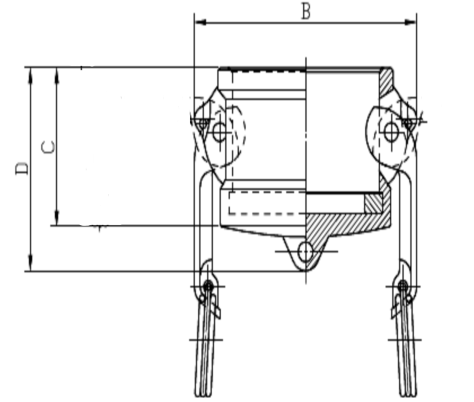

Aluminum camlock Dust cap  Type DC

Unit:mm

Part No

B

C

D

050

45

31.5

39.5

075

61.3

33.2

45.2

100

68.2

39.9

57.4

125

79.7

45.5

63

150

87.4

46

62

200

97

51.5

69

250

109.5

55.5

73

300

131.8

58

76.5

400

159.9

59

78

500

187.6

60

86

600

240

62.8

90.8
