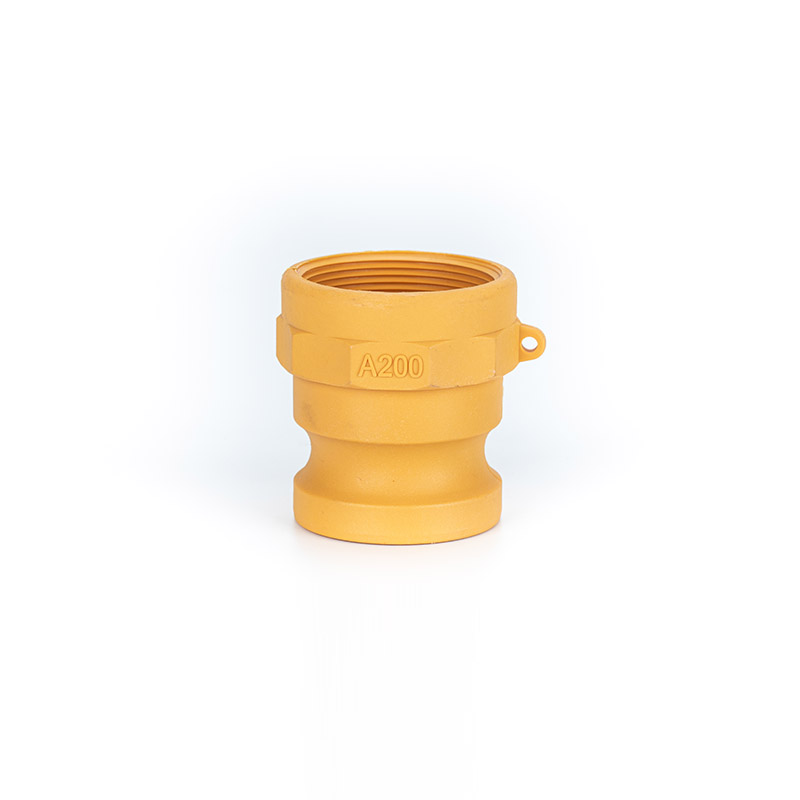

Nylon camlock fitting Type A

  • Male Adapter With Female Thread
  • Product Name: Type A
  • Material:Nylon
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-4 Categories: ,

Description

Introduction:

Nylon cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″.Nylon camlock coupling is made of fiber reinforced nylon, which is suitable for conveying most chemicals, agricultural fertilizer. Nylon camlock coupling is easy to connect, it can save time, tools and manpower.

Description:

  • Body materials: fiber reinforced nylon
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (°C F 160)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type A camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • lightweight, convenient
  • good wear resistance
  • suitable for most chemicals, agricultural fertilizers
  • economic utility
  • disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

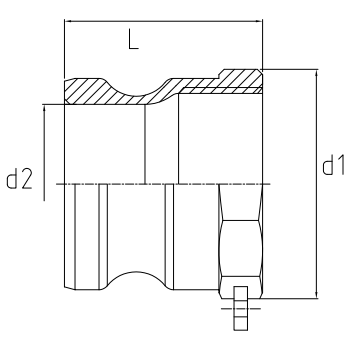

Size diagram:

Unit:mm

Part No

d1

d2

L

050

34

21.5

48

075

34

21.5

48

100

42

24

56

125

48

28.5

64

150

59

36

66

200

71

44

70

250

84

59

79

300

101

72

82

400

131

93

92
