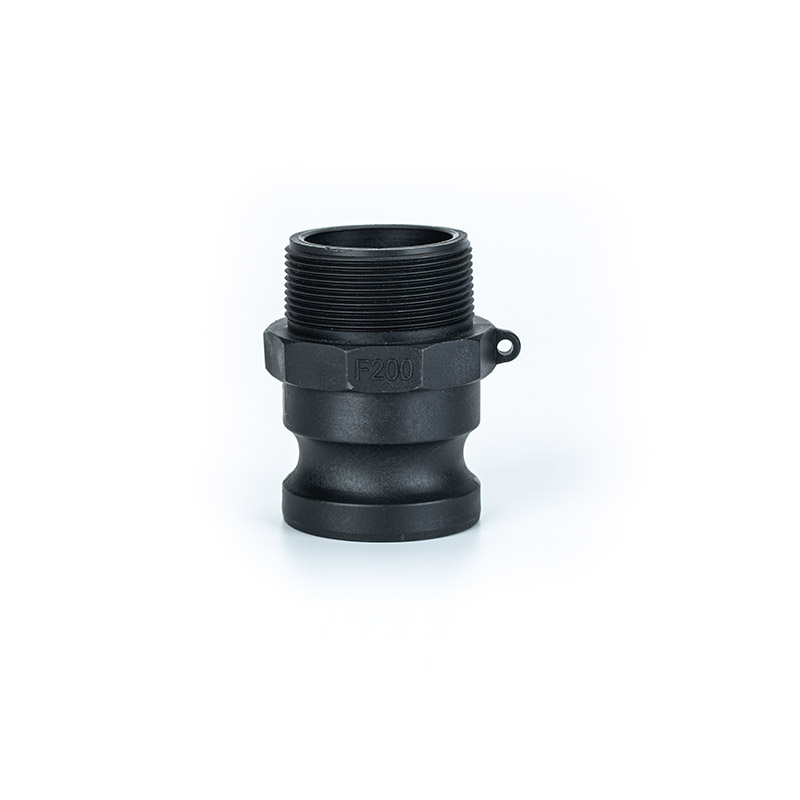

PP camlock fitting Type F

  • Male Adapter With Male Thread
  • Product Name: Type F
  • Material:Polypropylene
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-1 Categories: ,

Description

Introduction:

Polypropylene cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″. Black Polypropylene Camlock fitting s are made from polypropylene reinforced with 25%-30%acid-resistant fibreglass. Because of its excellent chemical resistance to most fortified chemicals, solvents, acids, bases, fertilizers and wastewater, so Polypropylene Camlock fittings are widely used in inhalation / discharge hoses in agriculture or industry.

Description:

  • Body materials: Polypropylene
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (160°F)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type F camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • lightweight, convenient
  • economy is cheap
  • good chemical resistance
  • disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

 Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

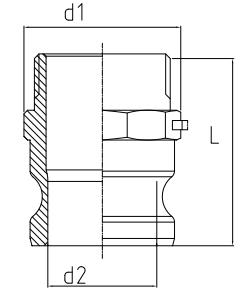

Size diagram:

Unit:mm

Part No

d1

d2

L

050

34

21

58

075

34

22

58

100

41

24

66

125

48

29

78

150

58

37

78

200

70

45

90

250

80

59

92

300

100

74

98

400

110

93

108
