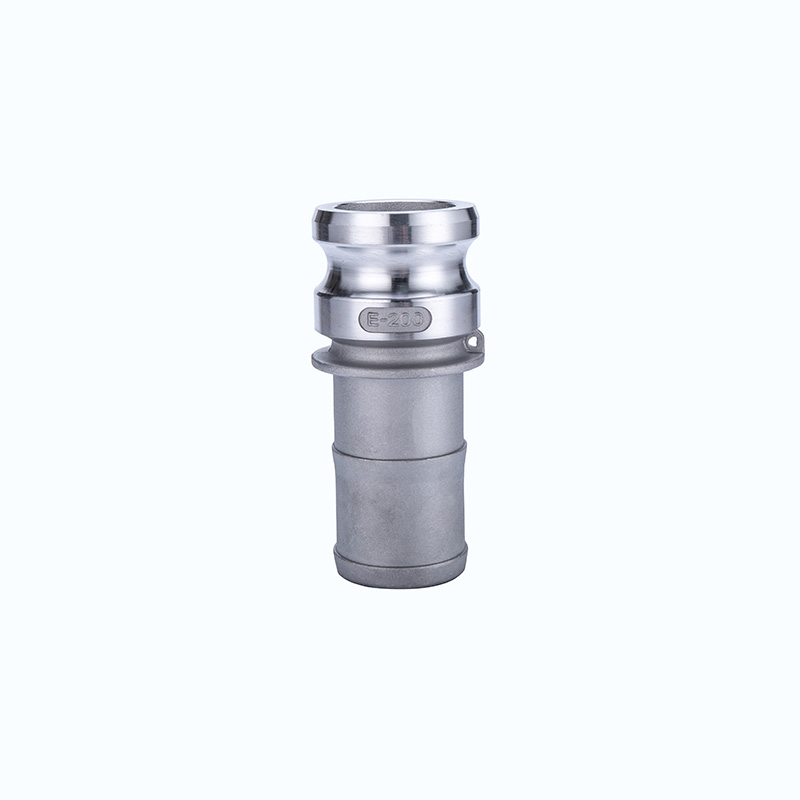

Aluminum camlock fitting Type E

  • Male Adapter with Hose Shank
  • Product Name: Type E
  • Material: Aluminum
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.We’ll get back to you as soon as possible.

Description

Introduction:

Aluminum cam and groove adapters manufactured in accordance with standard A-A-59326(replacing original standard Mil-C-27487) or EN14420-7(replacing DIN 2828), size from 1/2″ to 8″. The coupling of cam grooves between manufacturers is interchangeable, except for 1/2″(12.7 mm), 5″(127 mm) and 8″(203.2 mm).And A-A-59326 can be coupled with the camlcok coupling of the EN14420-7(replacing DIN 2828), but the two standard tube tails are different.

Camlock fittings provides a simple and reliable method for connecting and disconnecting hoses with good wear resistance, chemical resistance and economic cost. Camlock fittings operation is convenient, with the advantages of quick connection, flexible disassembly and labor saving.A person can complete the connection seal without the help of others and other tools, Camlock fittings widely used, can transport oil, fuel, water, mud, salt water, chemicals and other fluid media.

Description:

  • Body Material: Aluminum
  • Handle: Stainless steel or Brass
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • Size:1/2″to 8″
  • Working pressure :50-250 Psi( depending on size and temperature)
  • Manufacture method:gravity casting

The use and connection way of the cam and groove couplings: Type F camlock can usually be used with D type, C type, DC type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Light weight, convenience, interchangeability, wear resistance
  • Easily disconnect/connect without tools
  • Economic utility

Industry applications:

  •  Industry: Petroleum, mining, municipal, construction, chemicals, agriculture
  •  Applications: Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, salt water, waste water, acid or alkaline chemicals transport

Aluminum camlock fittings operating pressure:

Size

Working Pressure

1/2” – 4”

150 Psi

5” – 6”

75 Psi

8”

50 Psi

Aluminum camlock fittings male adapter Type E:

Unit:mm

Part No

C

D

d1

d2

d3

G

L

050

72.4

26

12

11

2.3

14.2

24.5

075

85.3

26

17.5

17.6

8

21.5

34

100

100.8

33.8

18

18

8.5

27.4

42

125

109

39

20

18

9

34.1

48

150

123.5

41

25

26.5

8

39.6

57.5

200

142

46

31.5

31.5

10

52.4

66

250

150.5

48

32

32.6

11.5

66.6

82

300

157

50

35

31.6

11

77.8

91.5

400

170.5

52.8

38

40

9.4

103.2

119.5

500

206

53

40.2

63

15

129

148

600

250.8

57.3

31.8

31.8

15

154

185
