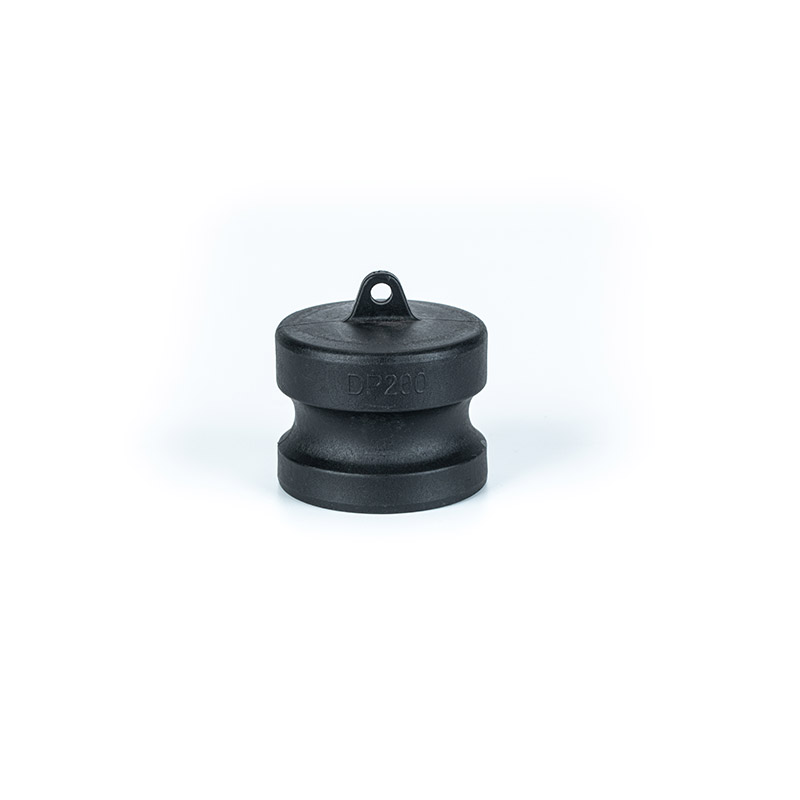

PP camlock fitting Type DP

  • Male Adapter Dust Plug
  • Product Name: Type DP
  • Material:Polypropylene
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-3-1 Categories: ,

Description

Introduction:

Polypropylene cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″. Black Polypropylene Camlock fitting s are made from polypropylene reinforced with 25%-30%acid-resistant fibreglass. It is light, economical and cheap, and has excellent tolerance to most corrosive acids, bases, solvents and wastewater. As a result Polypropylene Camlock fittings are good choices in paint or chemical industries or agricultural fertilizers.

Description:

  • Body materials: Polypropylene
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (160°F)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type DP camlock can usually be used with type D,type C, and type B of the same size.To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • lightweight, convenient
  • economy is cheap
  • good chemical resistance
  • Disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi



Size diagram:

Unit:mm

Part No

d1

L1

L2

050

14

39

28

075

21

41

30

100

23

49

34

125

29

58

43

150

35

60

46

200

44

65

49

250

59

67

51

300

73

69

52

400

93

73

57
