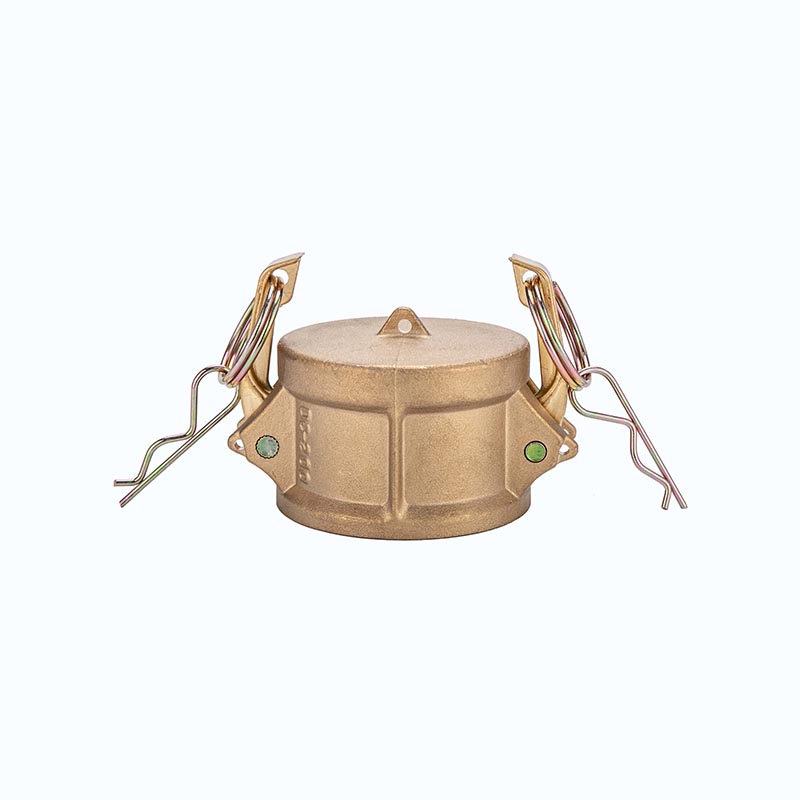

Brass camlock fitting Type DC

  • Female Coupler Dust Cap
  • Product Name: Type DC
  • Material: Brass
  • Sizes:1/2″-6″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-1-1-1-1-1-1 Categories: ,

Description

Introduction:

Brass cam and groove coupler &adapter made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 8″.The 3/4″-6″ between manufacturers is interchangeable, while 1/2″,5″ and 8″ are not necessarily interchangeable because they are not standard dimensions.Camlock couplings makes it easy and easy to make hose and equipment, hose and vehicle, hose extension / disconnect, etc., Which can save time and manpower. Because of its non-sparking characteristics, good corrosion resistance and long service life, brass camlock is more suitable for using in ship refueling system, storage tank, pump, fuel tank, etc.

Description:

  • Body materials: Brass
  • Handle: Brass
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • SIZE:1/2″to 6″
  • Pressure :75-250 Psi( depending on size and temperature)
  • Operating temperature :-40 to 145℃
  • Manufacture method:Forging and casting

Cam and groove couplings’ use and connection way: Type DC camlock can usually be used with type A, type E, and type F of the same size. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Convenience, interchangeability
  • good corrosion resistance
  • non -sparking characteristics
  • longer service life
  • Easily disconnect/connect without tools

Industry applications:

Industries: petroleum, mining, municipal, construction, marine refueling systems

Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2”

250 Psi

2-1/2”

150 Psi

3”

125 psi

4”

100 psi

5” – 6”

75 psi

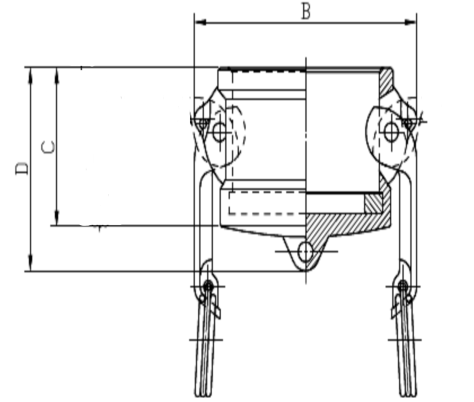

Size diagram:

Unit:mm



Part No

B

C

D

050

45

31.5

39.5

075

61.3

33.2

45.2

100

68.2

39.9

57.4

125

79.7

45.5

63

150

87.4

46

62

200

97

51.5

69

250

109.5

55.5

73

300

131.8

58

76.5

400

159.9

59

78

500

187.6

60

86

600

240

62.8

90.8
