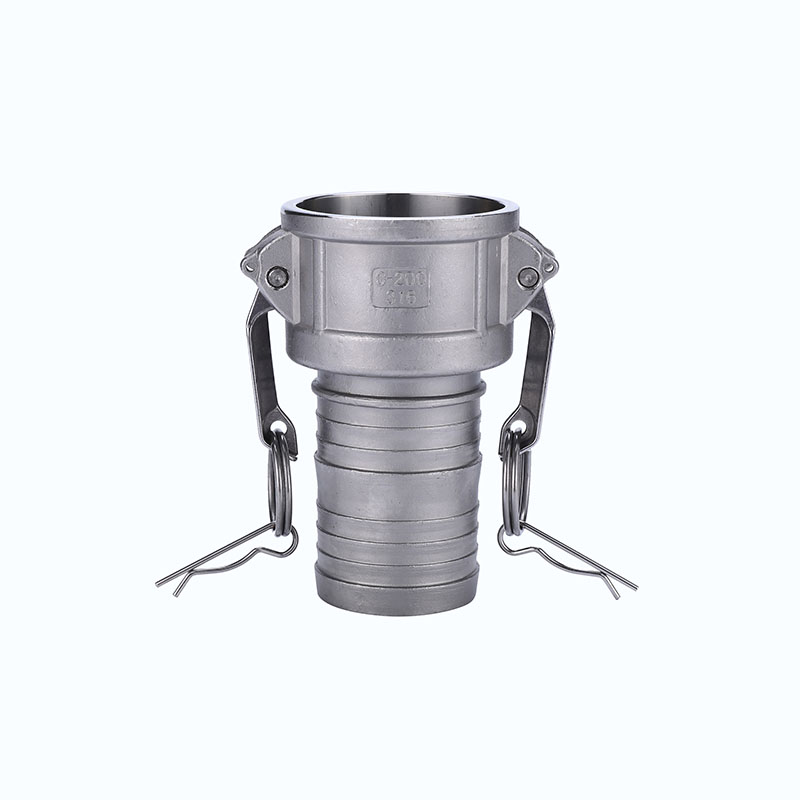

SS Camlock fitting Multi Barb Type C

  • Product Name: Camlock fitting Multi Barb Type C
  • Material: SS316 / SS304
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-1-1-1-2-1 Categories: ,

Description

Introduction:

Stainless steel camlock fittings are produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove couplings, they are mainly composed of male adapter and female coupler. Camlock fittings are easy to install. During the process of installation,no tools are required and hand pressure is enough.Stainless steel fittings are suitable for transporting acidic, alkaline, corrosive substances, seawater, wastewater, hydraulic oil, etc., but not suitable for transporting steam, compressed air and liquid gas.

Description:

  • Body material:Stainless steel 316or 340
  • Handles & pins:Stainless steel
  • Gaskets:Buna-N,EPDM,PTFE &food grade silicone gasket
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • Size:1/2″to 8″
  • Working pressure :50-250 Psi( depending on size and temperature)
  • Manufacture method:precision casting

The use and connection way of camlock fittings: Type C camlock can usually be used with E type, F type, DP (Dust Plug)type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

  • Good corrosion resistance, wear resistance, high temperature stability
  • Convenience, interchangeability
  • Easily disconnect/connect without tools

Industry applications:

  •  Petroleum, mining, municipal, construction, chemicals, agriculture
  •  Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage

Stainless steel camlock fittings operating pressure:

Size

Working Pressure

1/2”

150 Psi

3/4”-2”

250 Psi

2-1/2”

225 Psi

3”

200 Psi

4”

150 Psi

5”-6”

75 Psi

Stainless steel camlock fittings:

Unit:mm

Part No

B

C

D

d1

d2

G

050

45

72.2

31.5

12

11

14.2

075

61.3

81

33.2

17.5

17.6

21.5

100

68.2

95

40

18

18

27.4

125

79.7

102.5

45.5

20

18

34.1

150

87.4

116.5

46

25

26.5

39.6

200

97

127.8

47.8

31.5

31.5

52.4

250

109.5

142.4

55.5

32

32.8

66.6

300

131.8

150

58

35

31.6

77.8

400

159.9

162.5

59

38

40.1

103.2

500

187.6

192

60

40.2

63.3

129

600

240

234.2

62.7

38.1

38.1

154
