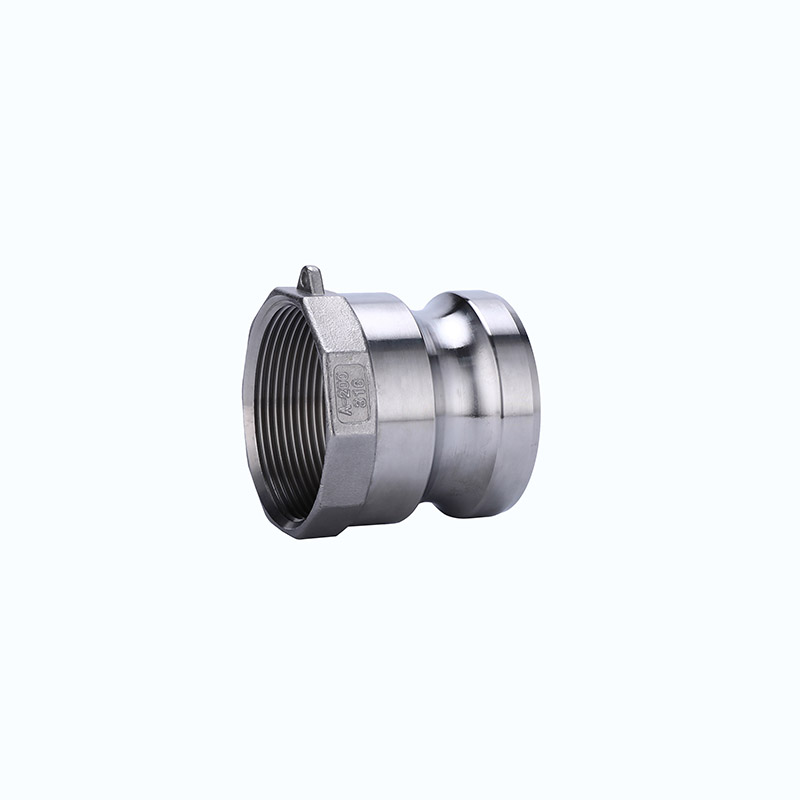

SS camlock fitting Type A

SS camlock fitting Type A

  • Male Adapter with Female Thread
  • Product Name: Type A
  • Material: SS316 / SS304
  • Sizes:1/2″-8″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.

Description

Introduction:

Stainless steel camlock coupling is produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove couplings, they are mainly composed of the male adapter and female coupler. Camlock coupling is easy to install. During the process of installation, no tools are required and hand pressure is enough. Stainless steel camlock is suitable for transporting acidic, alkaline, corrosive substances, seawater, wastewater, hydraulic oil, etc.

Description:

  • Body material:Stainless steel 316 or 340
  • Handles &pins:Stainless steel
  • Gaskets:Buna-N, EPDM,PTFE &food grade silicone gasket
  • The thread of camlock fittings is BSP, BSPT, NPT, G (ISO 228.1), and R (DIN2999).
  • SIZE:1/2″ to 8″
  • Working pressure:50-250 Psi( depending on size and temperature)
  • Manufacture method:precision casting

The use and connection way of cam and groove couplings: Type A camlock can usually be used with D type, C type, DC type. ( Dust Cap ) To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Good corrosion resistance
  • Convenience, interchangeability
  • Easily disconnect/connect without tools

Industry applications:

  • Petroleum, mining, municipal, construction, chemicals, agriculture
  • Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport, and storage

Stainless steel camlock fittings operating pressure

Size

Working Pressure

1/2”

150 Psi

3/4”-2”

250 Psi

2-1/2”

225 Psi

3”

200 Psi

4”

150 Psi

5”-6”

75 Psi

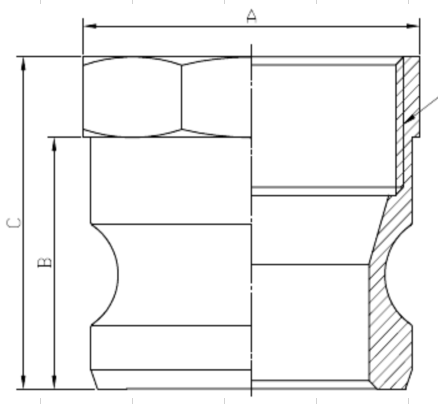

Stainless steel camlock coupling :

Unit:mm

Part No

A

B

C

050

24.4

26

41

075

32.4

26

41

100

38.5

34.8

51.6

125

48.5

40

55

150

56

41

56

200

66

46

59

250

80

50

68

300

96

51

71.7

400

122.5

53.8

73.8

500

152

53

75.5

600

181

57.3

79.8
