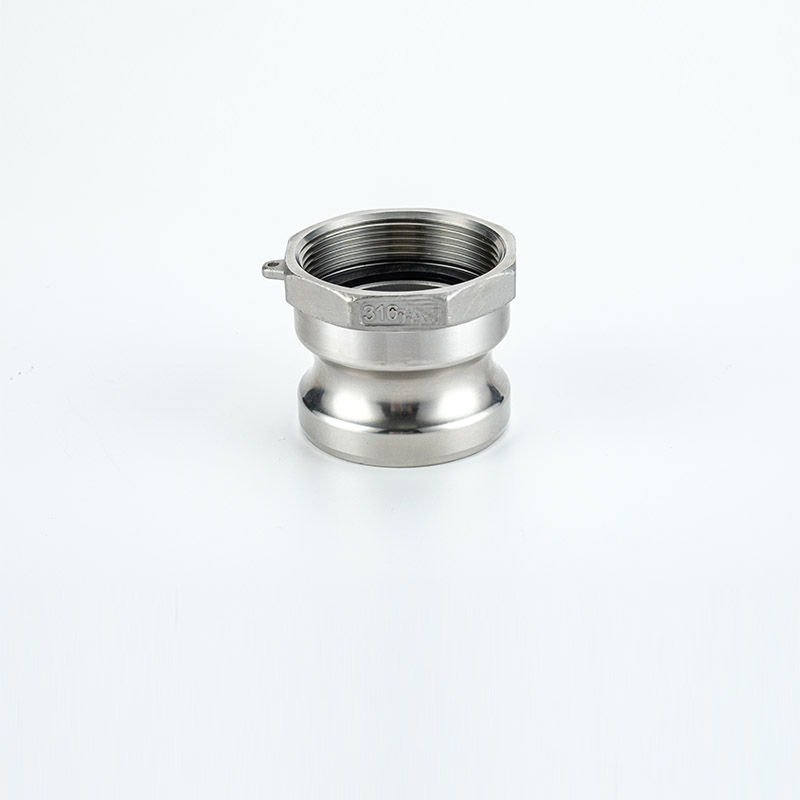

DIN2828 camlock fitting Type A

  • Product Name: Type A
  • Material:S/S & Aluminum
  • Sizes:1″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-4-2-1 Categories: ,

Description

Introduction:



DIN2828 camlockcoupling adapter Type A

According to European EN 14420-7 and the German DIN 2828 standards, camlock fittings can be coupled with the standard of MIL-C-27487 / A-A-59326A, but differ in terms of hose tail design. A flat thread seal has been added to the female threaded parts, and a smooth hose shank complying with DIN 2817 has been added for assembly with RK safety clamps complying with DIN 2817.

DIN2828 (EN14420-7) Camlock fitting, smooth tail with collar using with safety Clamp (EN14420-3/DIN2817)is assembled with hoses.

  • Body Material: Stainless Steel or Aluminum
  • Arm: stainless steel
  • Gaskets:NBR,PTFE,viton,EPDM,PU etc
  • Thread :BSP,  G (ISO228.1) , R  (DIN2999).
  • SIZE: 3/4” to 6”
  • Working pressure: 50-250Psi(It depends on the size and temperature)
  • Manufacture method: precision casting  & gravity casting.



Camlock fittings Feature:

  • Light, flexible and interchangeable
  • To connect and disconnect without tool
  • Economical



The application of camlock fitting in variety industries:

Industry: Oil, mine, municipal, construction, chemical and agriculture.

Application: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater, chemical transportation and storage etc.
