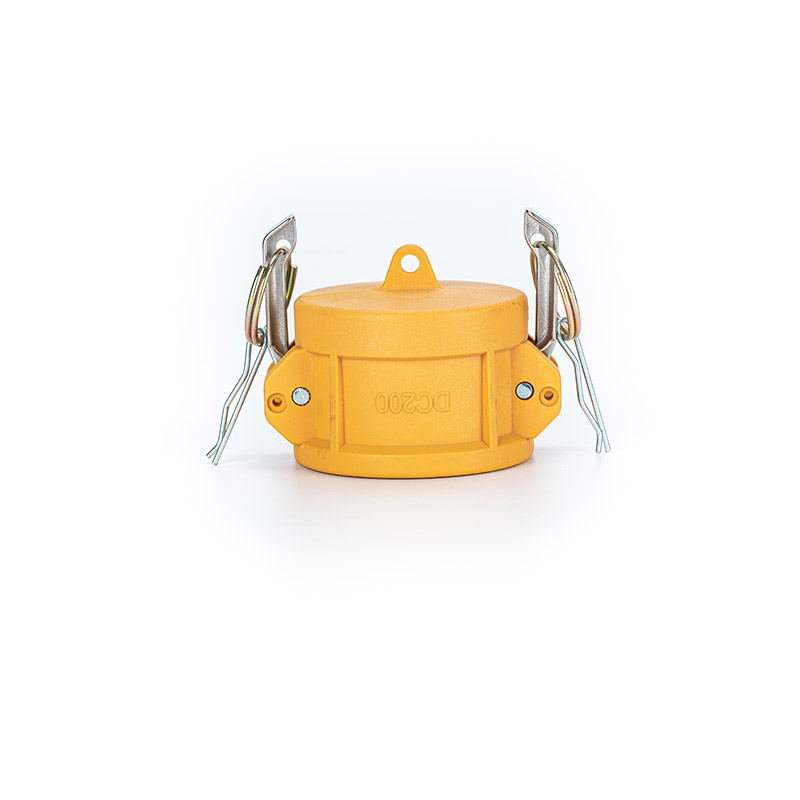

Nylon camlock fitting Type DC

  • Female Coupler  Dust Cap
  • Product Name: Type DC
  • Material:Nylon
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-2-1-1-1-1 Categories: ,

Description

Introduction:

Nylon cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″.Fiber reinforced nylon camlock couplings have some special advantages over aluminum,stainless steel or brass couplings.It is highly resistant to cross threading,impact,warpage and crushing. but also has good corrosion resistance, suitable for conveying various chemicals, solvents, coolants, gasoline, slurry mixtures.

Description:

  • Body materials: fiber reinforced nylon
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (160°F)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type DC camlock can usually be used with type A, type E, and type F of the same size. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.

Feature:

Lightweight, convenient

good wear resistance

suitable for most chemicals, agricultural fertilizers

economic utility

Disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

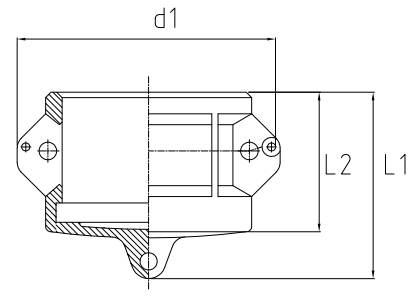

Size diagram:

Unit:mm

Part No

d1

L1

L2

050

43

43

33

075

50

46

36

100

60

57

43

125

75

63

48

150

82

65

51

200

98

73

57

250

108

76

58

300

127

76

60

400

162

76

60
