PP camlock fitting Type D

  • Female Coupler  With Female Thread
  • Product Name: Type D
  • Material:Polypropylene
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-2 Categories: ,

Description

Introduction:

Polypropylene cam and groove Coupling are manufactured according to standard A-A-59326(original standard Mil-C-27487, size from 1/2″ to 4″. Black Polypropylene Camlock fitting s are made from polypropylene reinforced with 25%-30%acid-resistant fibreglass. Because the operation is easy, which can quickly connect / disconnect the hose coupling. And it has good chemical resistance, acid and alkali resistance, oxidation resistance. So in pumps, IBC, Storage tanks, Chemical transporter, Chemical plants are widely used in piping systems that require frequent disconnection.

Description:

  • Body materials: Polypropylene
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (160°F)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

The use and connection way of cam and groove couplings: Type D camlock can usually be used with the same size type A, type F, type E, type DP. ( Dust Plug ) To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • lightweight, convenient
  • economy is cheap
  • good chemical resistance
  • disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

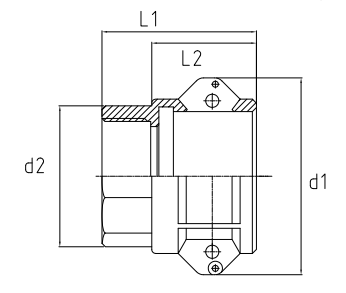

Size diagram:

Unit:mm

Part No

d1

d2

L1

L2

050

52

34

54

34

075

52

34

54

34

100

62

41

60

41

125

78

59

70

46

150

88

59

72

49

200

98

71

83

55

250

111

84

85

56

300

132

102

90

60

400

165

131

92

60
