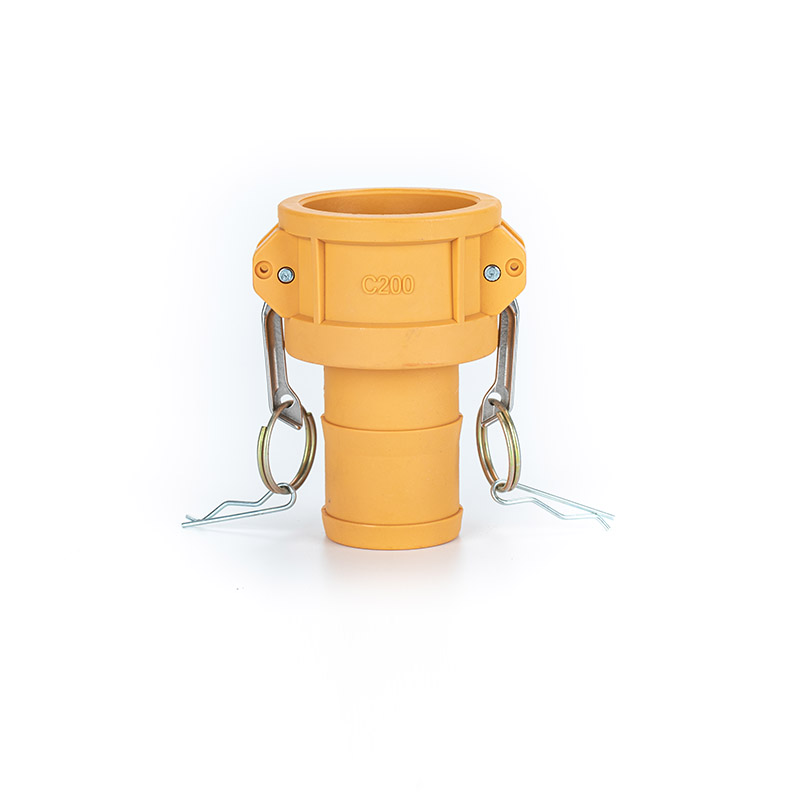

Nylon camlock fitting Type C

  • Female Coupler  With Hose Shank
  • Product Name: Type C
  • Material:Nylon
  • Sizes:1/2″-4″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-6-2-1-1-2 Categories: ,

Description

Introduction:

Nylon cam and groove Coupling are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 4″.Fiber reinforced nylon camlock couplings are worked under low pressure, apply to most corrosive chemicals and solvents. Nylon camlock fittings share multiple advantages such as high resistance to cross threading,impact,warpage and crushing. compared with metal cam locking fittings.

Description:

  • Body materials: fiber reinforced nylon
  • Handle: stainless steel
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT
  • SIZE:1/2″to 4″
  • Pressure :50-100 Psi( depending on size and temperature)
  • Operating temperature :-30-70°C (160°F)
  • When the temperature rises, the working pressure drops
  • Manufacture method:Injection molding

Cam and groove couplings use and connection mode: Type C camlock can usually be used with type A, type E, type F, type DP (Dust Plug) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • lightweight, convenient
  • good wear resistance
  • suitable for most chemicals, agricultural fertilizers
  • economic utility
  • disconnect/connect without tools

Industry applications:

Industries: chemical, paint, agriculture, municipal, sewage

Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2-1/2”

100 Psi

3” – 4”

50 Psi

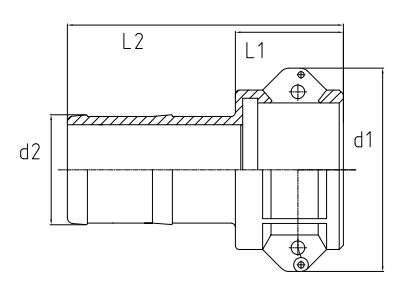

Size diagram:

Unit:mm

Part No

d1

d2

L1

L2

050

50

14

34

79

075

50

21

34

87

100

60

27

41

99

125

76

34

46

103

150

85

39

49

110

200

94

52.5

56

124

250

109

66

56

141

300

133

78

60

147

400

160

102

60

170
