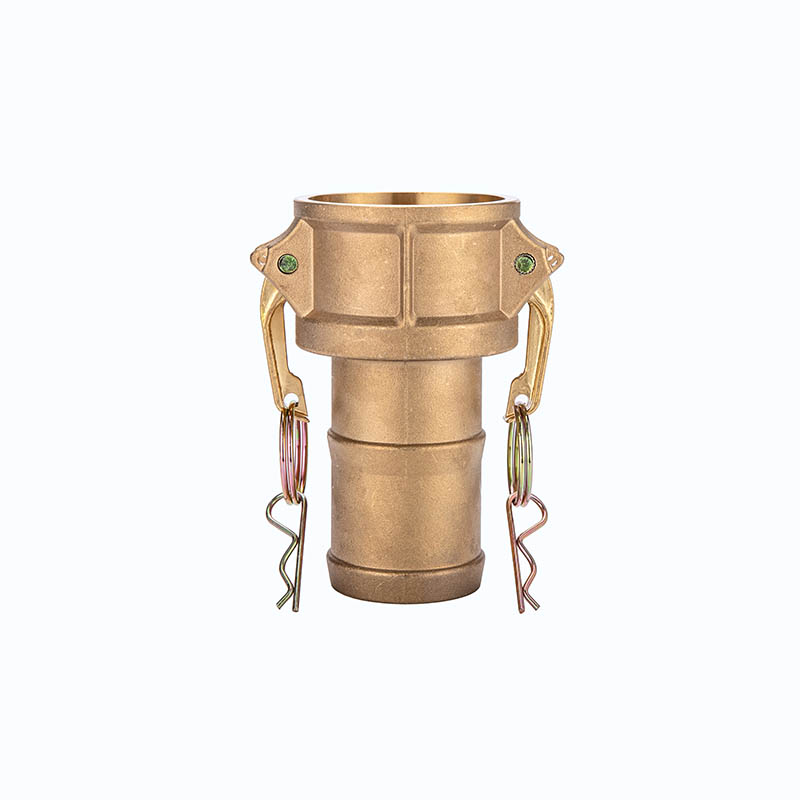

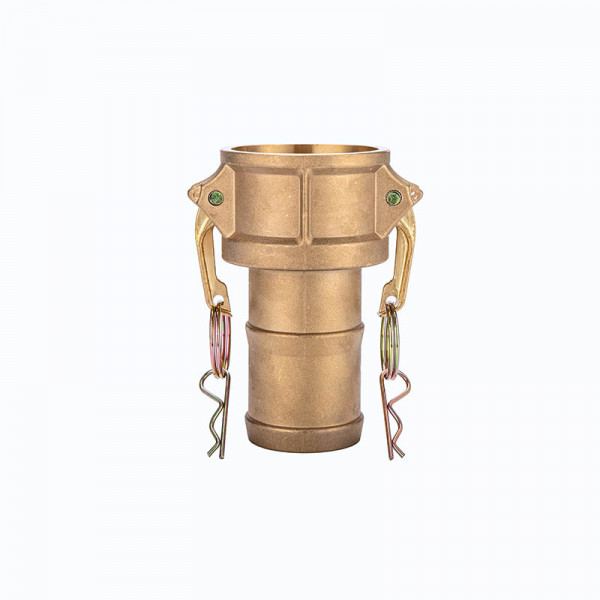

Brass camlock fitting Type C

  • Female Coupler With Hose Shank
  • Product Name: Type C
  • Material: Brass
  • Sizes:1/2″-6″
  • MOQ: 50 PCS
  • Customizable contents: sizes, logo
  • Certificates: CE,ISO9001:2015
  • Competitive price
  • To learn more and get a quote, please leave your requirements on the form below.
  • We’ll get back to you as soon as possible.
SKU: 2041-1-1-1-1-1 Categories: ,

Description

 Introduction:

Brass cam and groove coupler &adapter are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 6″.The 3/4″-6″ between manufacturers is interchangeable, while 1/2″,5″ and 8″ are not necessarily interchangeable because they are not standard dimensions.Camlock coupling to connect and disconnect hoses become simple and easy, no tools are needed during connection. Brass camlock connects PVC hoses, tubing, etc.,It’s suitable for using in storage tanks, marine refueling systems, pumps, tanks, etc. Brass camlock is a good choice, it has good corrosion resistance and long service life, convenient operation,which can save time, tools and manpower.

Description:

  • Body materials: Brass
  • Handle: Brass
  • Gaskets:Buna-N (NBR), EPDM
  • The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
  • SIZE:1/2″to 6″
  • Pressure :75-250 Psi( depending on size and temperature)
  • Operating temperature :-40 to 145℃
  • Manufacture method:Forging and casting

The use and connection way of the cam and groove couplings: Type C camlock can usually be used with type A,type E,type F, type DP (Dust Plug) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Feature:

  • Convenience, interchangeability
  • good corrosion resistance
  • non-sparking characteristics
  • longer service life
  • Easily disconnect/connect without tools

Industry applications:

Industries: petroleum, mining, municipal, construction, marine refueling systems

Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater

Operating pressure:

Size

Working Pressure

1/2” – 2”

250 Psi

2-1/2”

150 Psi

3”

125 psi

4”

100 psi

5” – 6”

75 psi

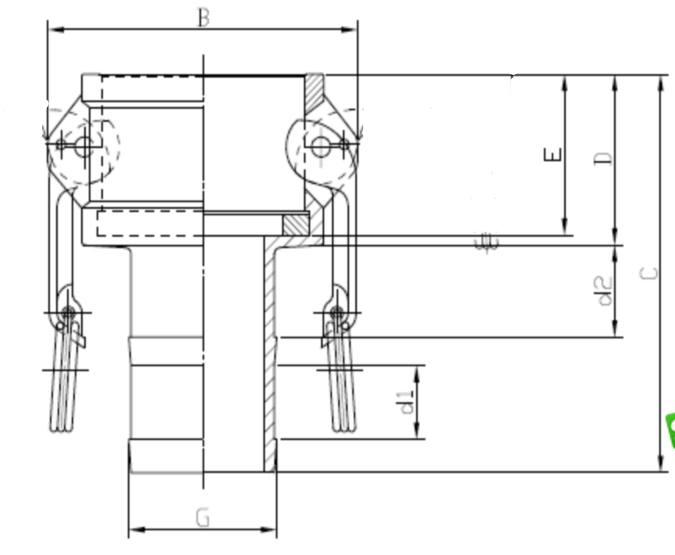

Size diagram:

Unit:mm

Part No

B

C

D

d1

d2

G

050

45

72.2

31.5

12

11

14.2

075

61.3

81

33.2

17.5

17.6

21.5

100

68.2

95

40

18

18

27.4

125

79.7

102.5

45.5

20

18

34.1

150

87.4

116.5

46

25

26.5

39.6

200

97

127.8

47.8

31.5

31.5

52.4

250

109.5

142.4

55.5

32

32.8

66.6

300

131.8

150

58

35

31.6

77.8

400

159.9

162.5

59

38

40.1

103.2

500

187.6

192

60

40.2

63.3

129

600

240

234.2

62.7

38.1

38.1

154
